Description

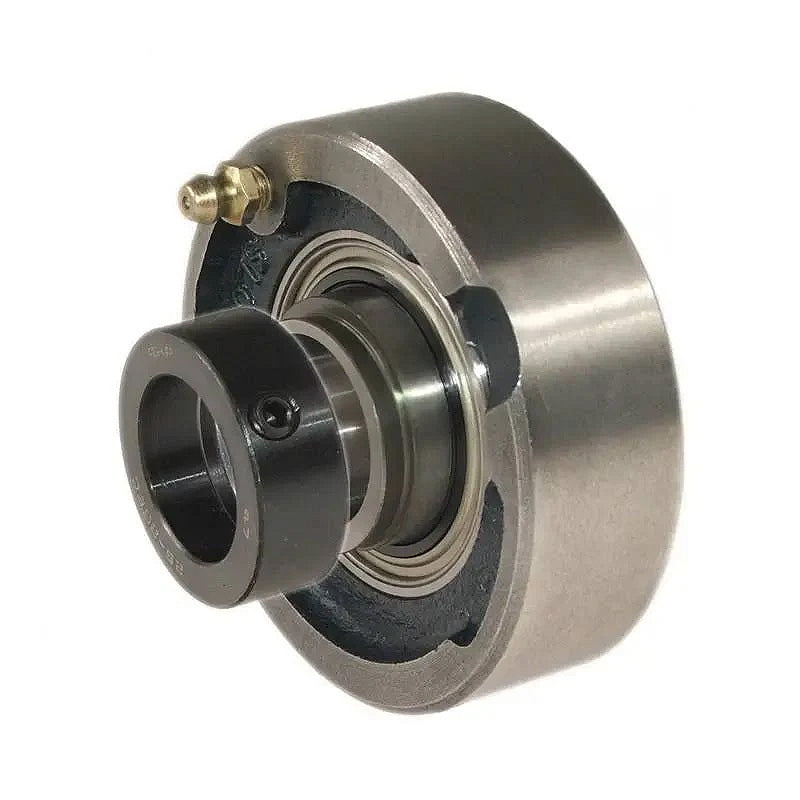

RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
125.44mm
Style:
SLC
Technical
Bore 2 inch
L 4.9385 inch
A 1.594 inch
A3 2.513 inch
B3 2.813 inch
s2 1.095 inch
d2 3 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 2.9 kg
Insert <a href="advanced_search_result.php?keywords=1055-2DECG+insonly">1055-2DECG Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
