• RHP SLC30EC Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter
1 1

SKU: SLC30EC-RHP

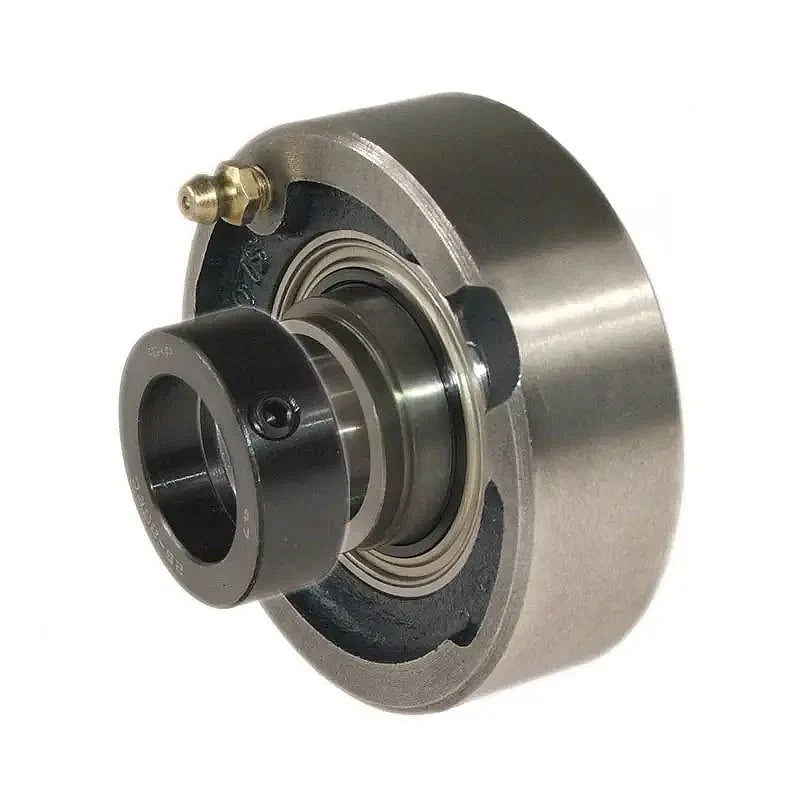

RHP SLC30EC Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter

RHP SLC30EC Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter
$67.87 ex VAT
$67.87 ex VAT
Sale Sold out

In stock

Price Break
10+ $60.40
19+ $57.01
29+ $56.33
39+ $55.65
49+ $54.97
74+ $54.30
99+ $50.90
199+ $50.22
249+ $49.55
499+ $48.87
999+ $47.51
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Outside Diameter:
88.93mm
Style:
SLC
Technical
Bore 30mm
L 88.925mm
A 27.78mm
A2 40.56mm
B2 35.68mm
s1 9.04mm
d2 44.45mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1230-30ECG+insonly">1230-30ECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
