SKU: SLC40-RHP

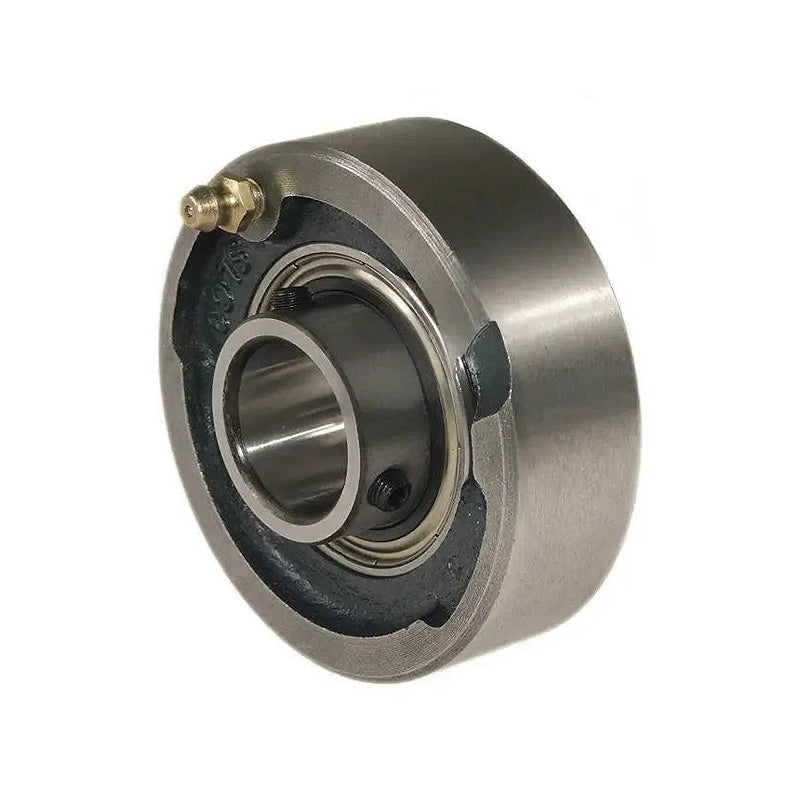

RHP SLC40 Cast Iron Cartridge Unit with 40mm Bore Insert 106.39mm Outside Diameter
RHP SLC40 Cast Iron Cartridge Unit with 40mm Bore Insert 106.39mm Outside Diameter
Regular price
$83.22
ex VAT
Regular price
Sale price
$83.22
ex VAT
In stock
Price Break
10+
$74.07
19+
$69.90
29+
$69.07
39+
$68.24
49+
$67.41
74+
$66.58
99+
$62.42
199+
$61.58
249+
$60.75
499+
$59.92
999+
$58.25
Couldn't load pickup availability
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 106.39mm
- Style:
- SLC
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 106.387mm |
| A | 37.31mm |
| A1 | 48.84mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
