SKU: SLC60-RHP

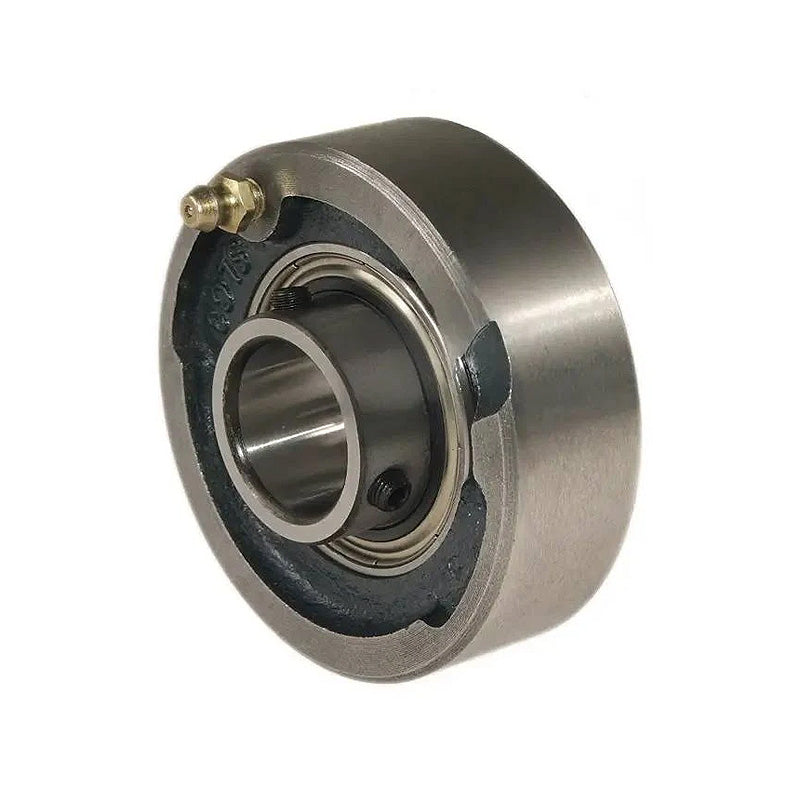

RHP SLC60 Cast Iron Cartridge Unit with 60mm Bore Insert 149.25mm Outside Diameter
RHP SLC60 Cast Iron Cartridge Unit with 60mm Bore Insert 149.25mm Outside Diameter
Regular price
$197.74
ex VAT
Regular price
Sale price
$197.74
ex VAT
In stock
Price Break
10+
$175.99
19+
$166.10
29+
$164.12
39+
$162.15
49+
$160.17
74+
$158.19
99+
$148.31
199+
$146.33
249+
$144.35
499+
$142.37
999+
$138.42
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 149.25mm
- Style:
- SLC
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 149.25mm |
| A | 41.28mm |
| A1 | 60.3mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 75.34mm |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
