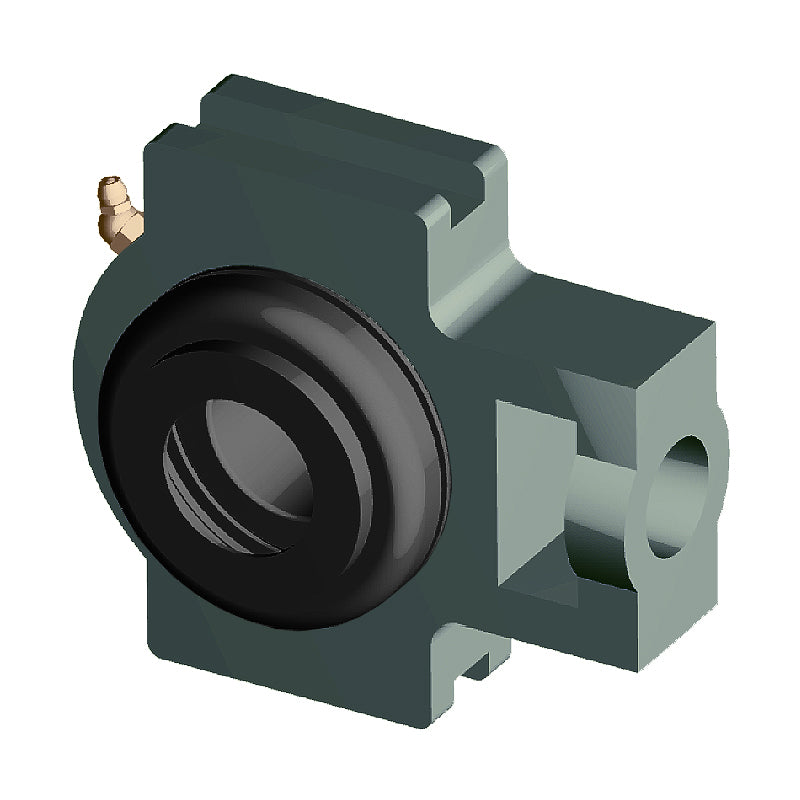

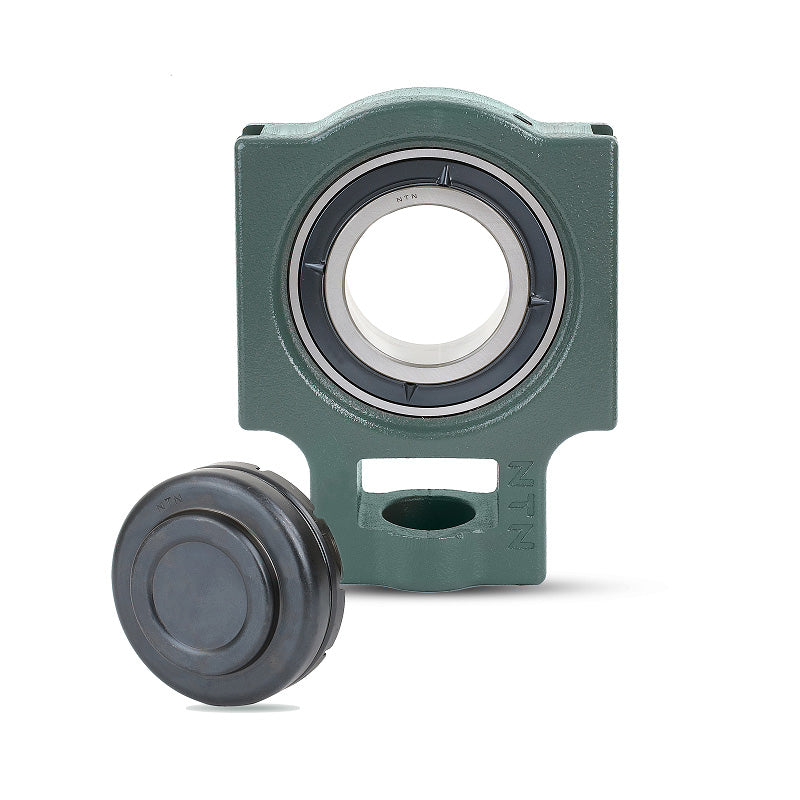

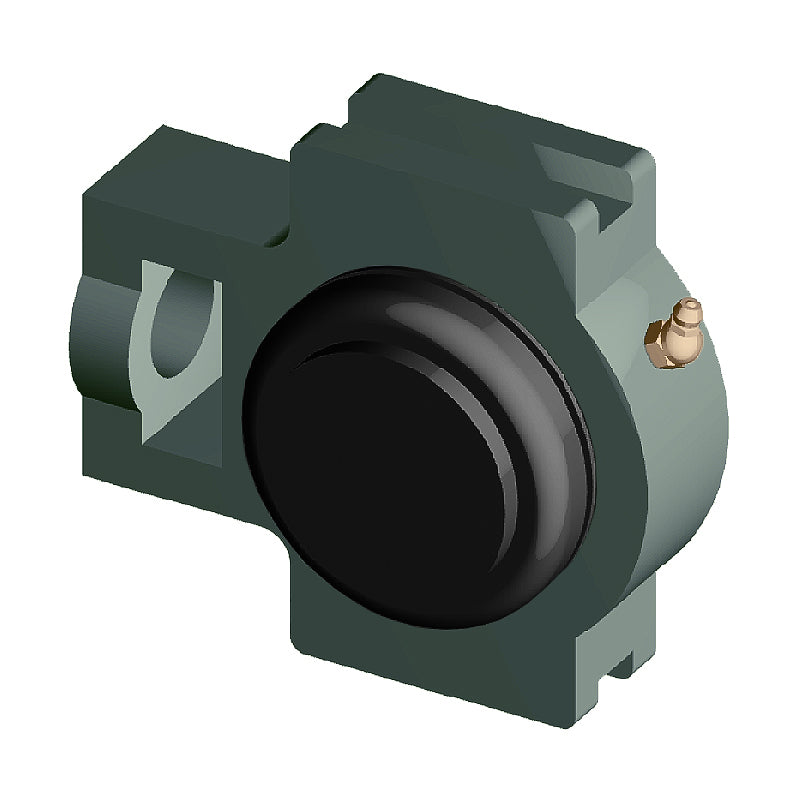

• NTN SM-UKT209D1/H2309X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
  • NTN SM-UKT209D1/H2309X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
  • NTN SM-UKT209D1/H2309X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
1 3

SKU: SM-UKT209D1/H2309X-NTN

NTN SM-UKT209D1/H2309X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days

NTN SM-UKT209D1/H2309X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
$119.02 ex VAT
$119.02 ex VAT
Sale Sold out

In stock

Price Break
5+ $117.83
10+ $113.07
20+ $110.69
50+ $107.12
100+ $104.74
500+ $98.79
1000+ $83.31
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor

Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
UKT
Technical
Shaft diameter 40mm
N<sub>1</sub> 19mm
L<sub>2</sub> 18mm
H<sub>2</sub> 83mm
N<sub>2</sub> 49mm
N 29mm
L<sub>3</sub> 83mm
A<sub>1</sub> 16mm
H<sub>1</sub> 102mm
H 117mm
L 145mm
A<sub>2</sub> 35mm
A 49mm
r 57mm
L<sub>1</sub> 88mm
B<sub>1</sub> 50mm
t<sub>1</sub> 12mm
A<sub>4</sub> 82mm
Mass 2.6 kg
