SKU: SNP2-RHP

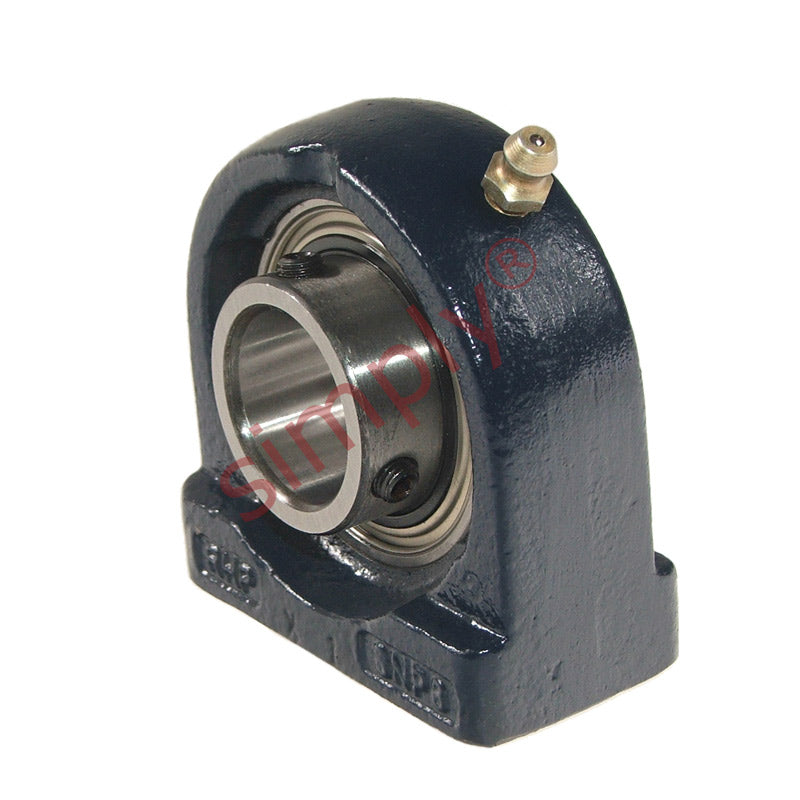

RHP SNP2 Threaded Base Small Footprint Pillow / Plummer Block and 2 inch Bore Grub Screw Full Width Insert
RHP SNP2 Threaded Base Small Footprint Pillow / Plummer Block and 2 inch Bore Grub Screw Full Width Insert
Regular price
$160.36
ex VAT
Regular price
Sale price
$160.36
ex VAT
In stock
Price Break
10+
$142.72
19+
$134.70
29+
$133.10
39+
$131.50
49+
$129.89
74+
$128.29
99+
$120.27
199+
$118.67
249+
$117.06
499+
$115.46
999+
$112.25
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- SNP
- Bolt Hole Centres:
- 118.01mm = 4.646 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 6.063 inch |
| H | 2.5 inch |
| H1 | 1.043 inch |
| H2 | 5.118 inch |
| J | 4.646 inch |
| Threads | 5/8-11 UNC |
| A | 2.362 inch |
| A1 | 1.639 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| d1 | 2.709 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
