• RHP SNP30A Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Flat Back Insert
  • RHP SNP30A Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Flat Back Insert
  • RHP SNP30A Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Flat Back Insert
  • RHP SNP30A Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Flat Back Insert
1 4

SKU: SNP30A-RHP

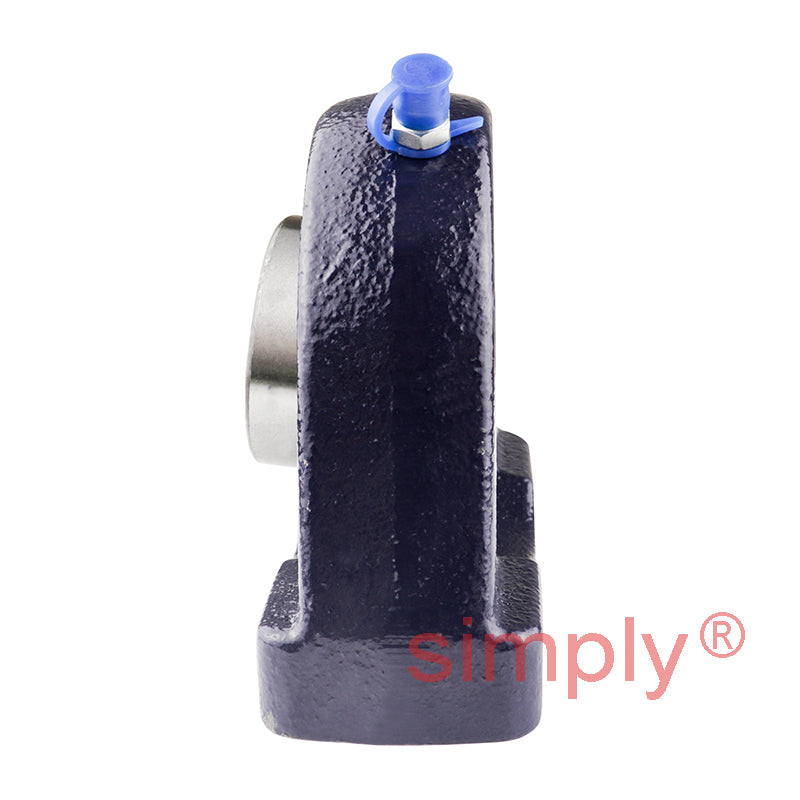

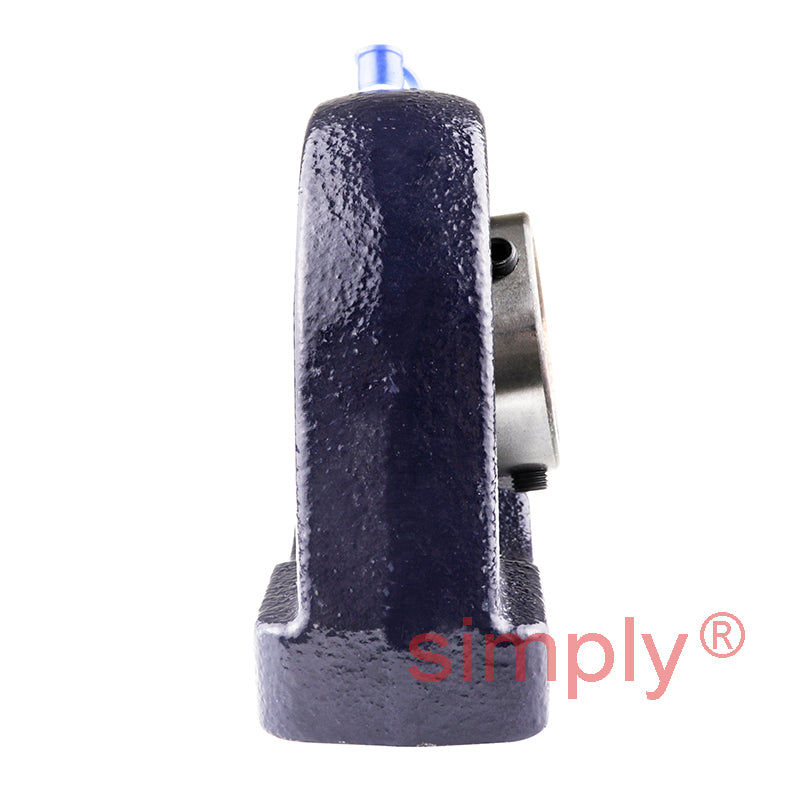

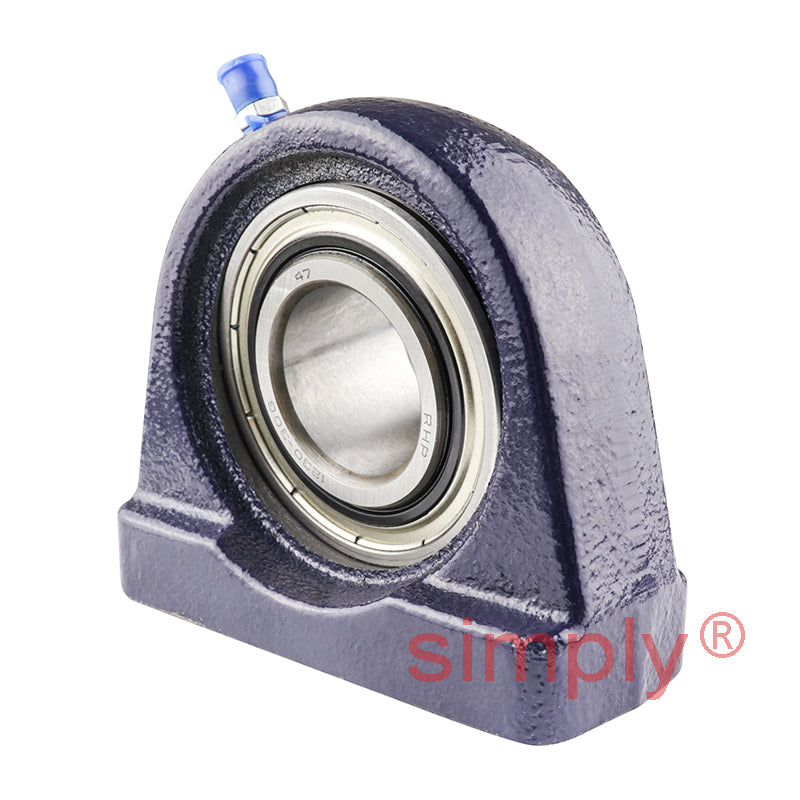

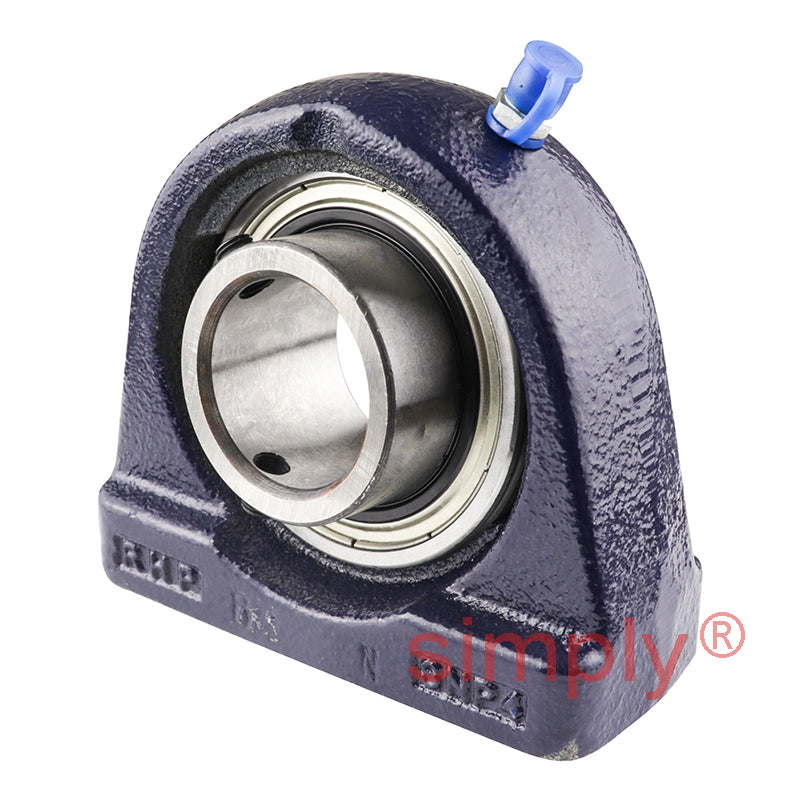

RHP SNP30A Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Flat Back Insert

RHP SNP30A Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Flat Back Insert
$71.84 ex VAT
$71.84 ex VAT
Sale Sold out

In stock

Price Break
10+ $63.94
19+ $60.35
29+ $59.63
39+ $58.91
49+ $58.19
74+ $57.47
99+ $53.88
199+ $53.16
249+ $52.44
499+ $51.72
999+ $50.29
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SNP A Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint, flat back bearing insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
SNP
Bolt Hole Centres:
76.2mm
Technical
Bore 30mm
L 96mm
H 42.9mm
H1 16.5mm
H2 83.9mm
J 76.2mm
Threads M10x1.50
A 40mm
A1 28mm
B1 31.21mm
s1 9.04mm
d1 40mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.8 kg
Insert <a href="advanced_search_result.php?keywords=1230-30AG+insonly">1230-30AG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
