SKU: SNP35A-RHP

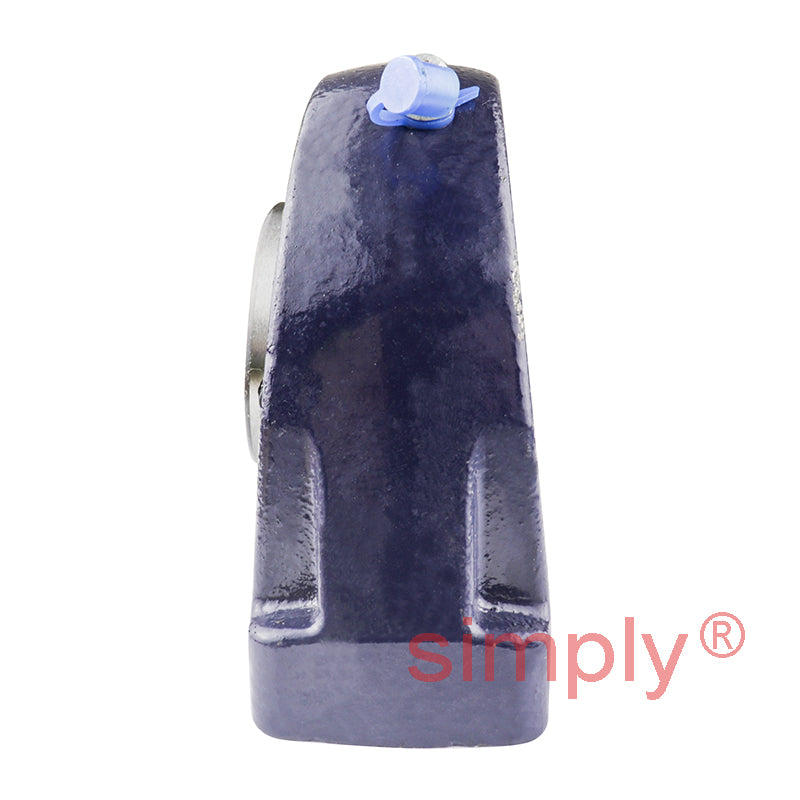

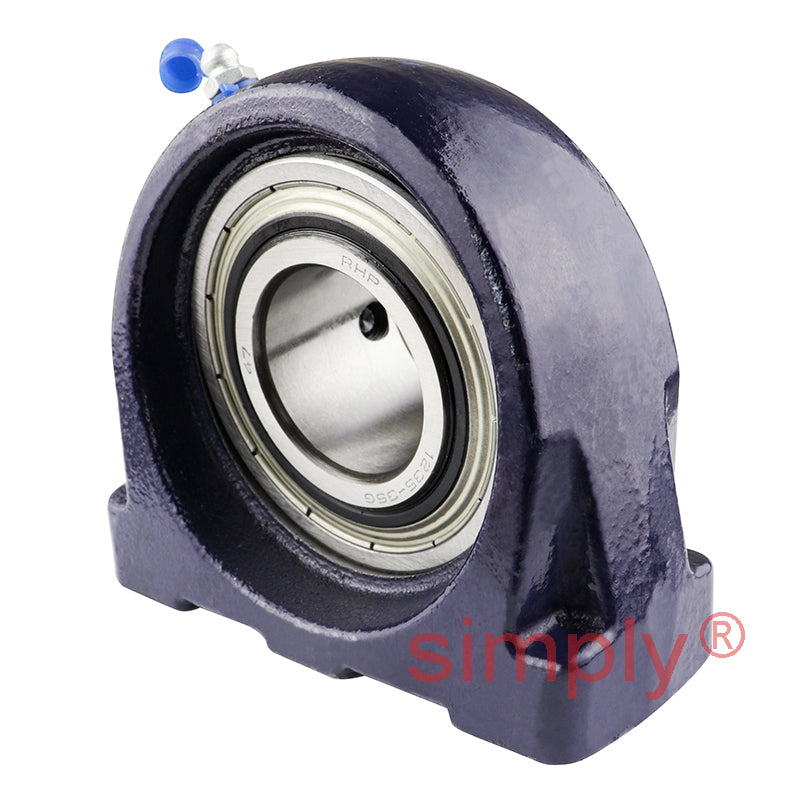

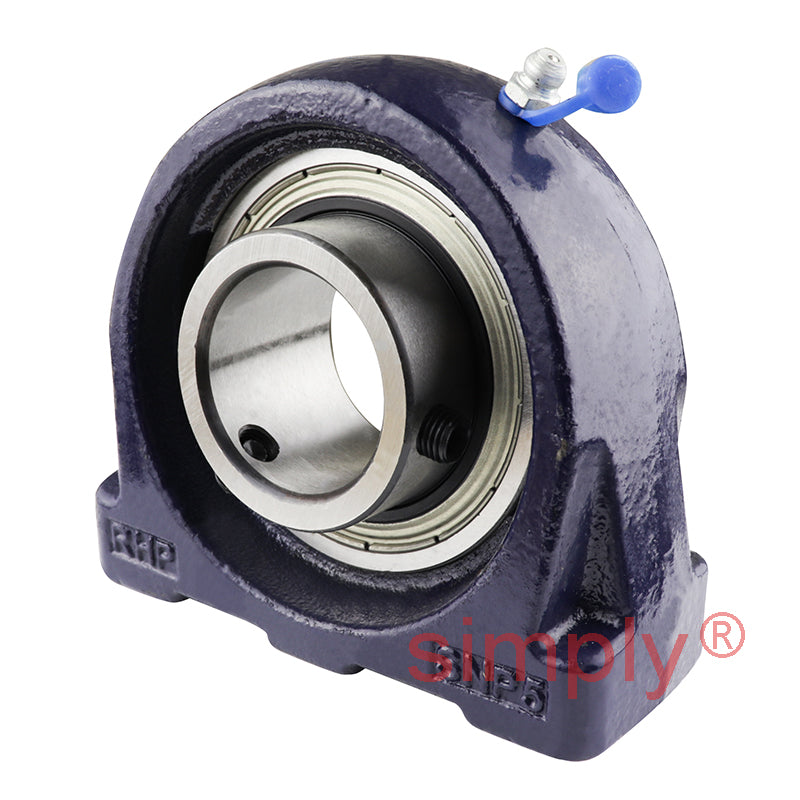

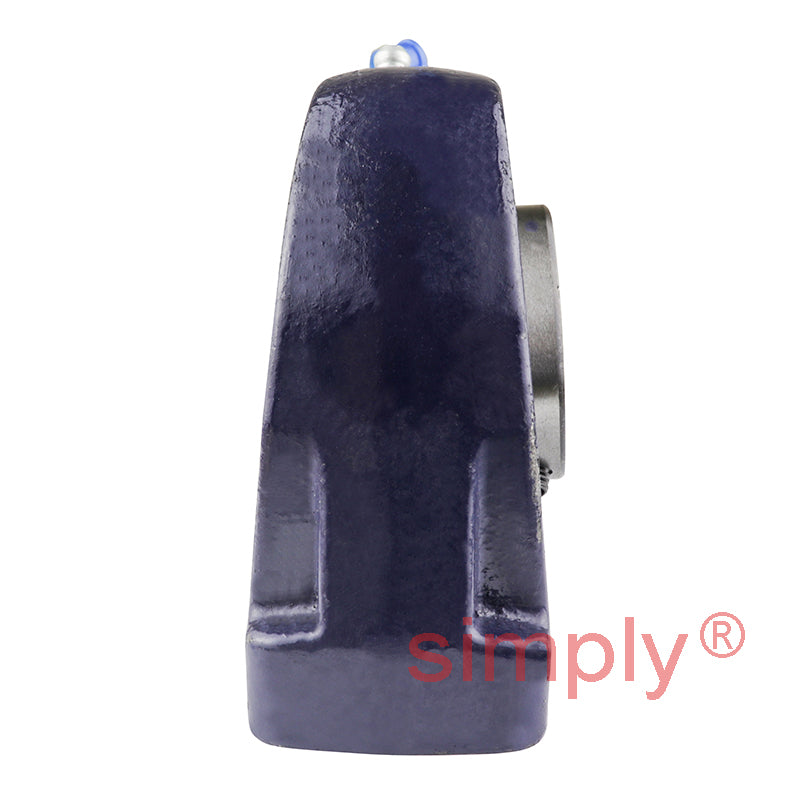

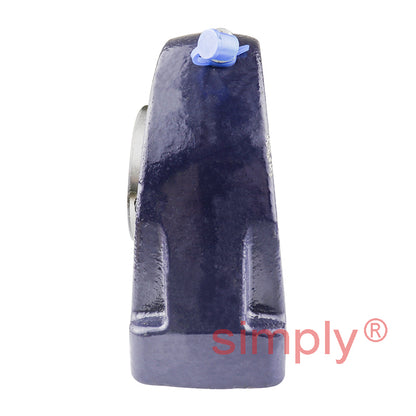

RHP SNP35A Threaded Base Small Footprint Pillow / Plummer Block and 35mm Bore Grub Screw Flat Back Insert

RHP SNP35A Threaded Base Small Footprint Pillow / Plummer Block and 35mm Bore Grub Screw Flat Back Insert
$82.53 ex VAT
$82.53 ex VAT
Sale Sold out

In stock

Price Break
10+ $73.45
19+ $69.33
29+ $68.50
39+ $67.67
49+ $66.85
74+ $66.02
99+ $61.90
199+ $61.07
249+ $60.25
499+ $59.42
999+ $57.77
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SNP A Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint, flat back bearing insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
SNP
Bolt Hole Centres:
82.6mm
Technical
Bore 35mm
L 110mm
H 47.6mm
H1 19.5mm
H2 95.6mm
J 82.6mm
Threads M10x1.50
A 45mm
A1 30mm
B1 34.9mm
s1 9.55mm
d1 46.69mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 2.4 kg
Insert <a href="advanced_search_result.php?keywords=1235-35AG+insonly">1235-35AG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
