SKU: SNP35EC-RHP

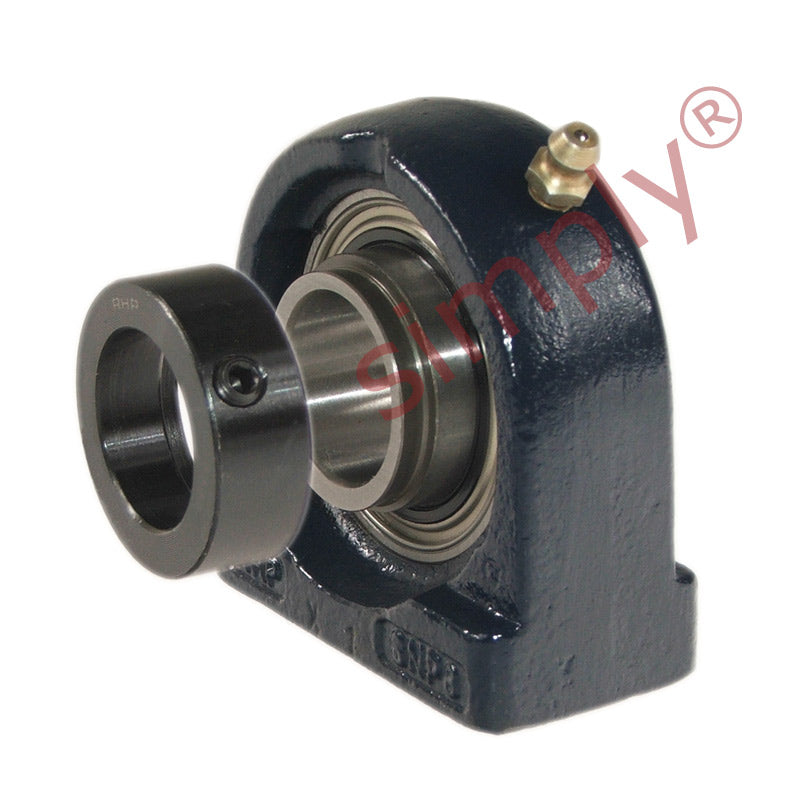

RHP SNP35EC Threaded Base Small Footprint Pillow / Plummer Block and 35mm Bore Flat Back Collar Insert
RHP SNP35EC Threaded Base Small Footprint Pillow / Plummer Block and 35mm Bore Flat Back Collar Insert
Regular price
$86.20
ex VAT
Regular price
Sale price
$86.20
ex VAT
In stock
Price Break
10+
$76.72
19+
$72.41
29+
$71.55
39+
$70.68
49+
$69.82
74+
$68.96
99+
$64.65
199+
$63.79
249+
$62.93
499+
$62.06
999+
$60.34
Description
Description
|
RHP SNP EC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- SNP
- Bolt Hole Centres:
- 82.6mm
Technical
Technical

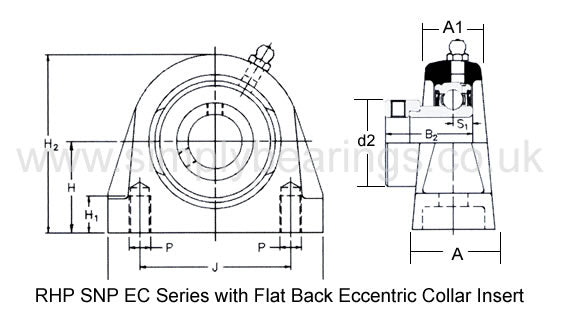

| Bore | 35mm |
|---|---|
| L | 110mm |
| H | 47.6mm |
| H1 | 19.5mm |
| H2 | 95.6mm |
| J | 82.6mm |
| Threads | M10x1.50 |
| A | 45mm |
| A1 | 30mm |
| B2 | 38.88mm |
| s1 | 9.55mm |
| d2 | 55.58mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 2.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
