SKU: SRP.9X50MM

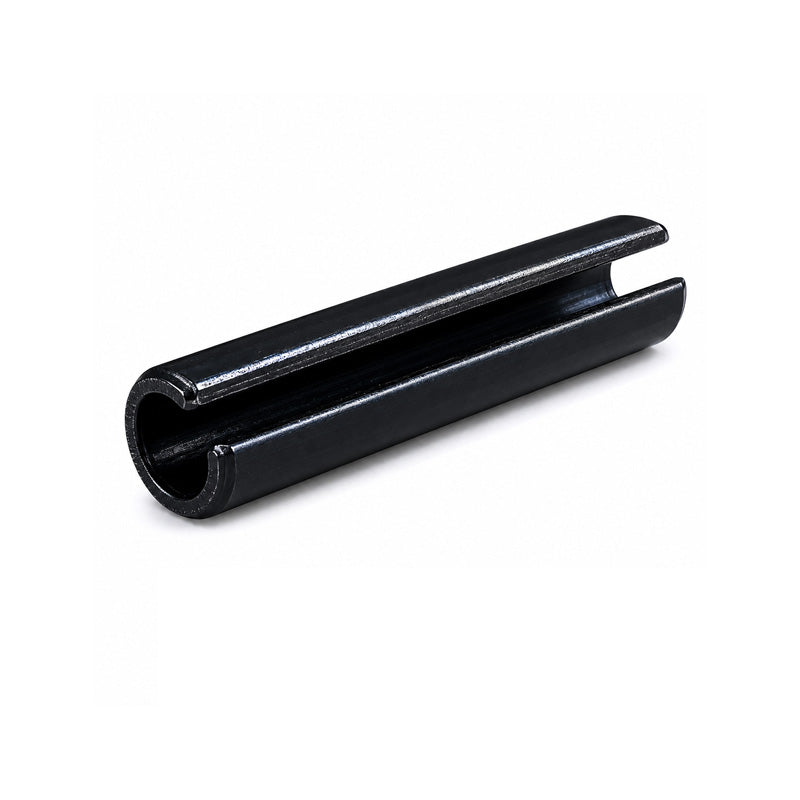

Metric Slotted Carbon Spring Steel Spring Roll Pin with Black Oxide Finish 9x50mm
Metric Slotted Carbon Spring Steel Spring Roll Pin with Black Oxide Finish 9x50mm
Regular price
$1.60
ex VAT
Regular price
Sale price
$1.60
ex VAT
In stock
Price Break
5+
$1.12
10+
$0.96
20+
$0.88
50+
$0.80
100+
$0.64
500+
$0.56
1000+
$0.48
Description
Description
Slotted Carbon Spring Steel Roll Pins with Black Oxide Finish: These roll pins are manufactured from high-grade carbon spring steel (DIN 1481 / CS70). The pins are finished with a black oxide coating which not only improves durability but provides improved corrosion and wear resistance. Commonly, roll pins are used to keep components in place where precise alignment is not necessary.
Benefits: Cost-effective, quick installation, corrosion and wear resistant
- Brand / Quality:
- Simply Slotted Roll Pins - High Quality
- Outside Diameter:
- 9mm
- Length:
- 50mm
- Material:
- Carbon Spring Steel
- Grade:
- CS70
Technical
Technical
| Outside Diameter d1 | 9mm |
|---|---|
| Length L | 50mm |
| Length Tolerance | +/- 0.50mm |
| Chamfer Angle a | 15 deg |
| Material | Carbon Spring Steel |
| Material Grade | CS70 |
| Finish | Black Oxide |
| Weight per pin | 0.025kg |
