SKU: SS.SB.204
SSSB204 Stainless Steel Metric Bearing Insert with 20mm Bore 47mm Outside Dia
SSSB204 Stainless Steel Metric Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
$11.60
ex VAT
Regular price
Sale price
$11.60
ex VAT
In stock
Price Break
10+
$10.32
19+
$9.74
29+
$9.63
39+
$9.51
49+
$9.40
74+
$9.28
99+
$8.70
199+
$8.58
249+
$8.47
499+
$8.35
999+
$8.12
Description
Description

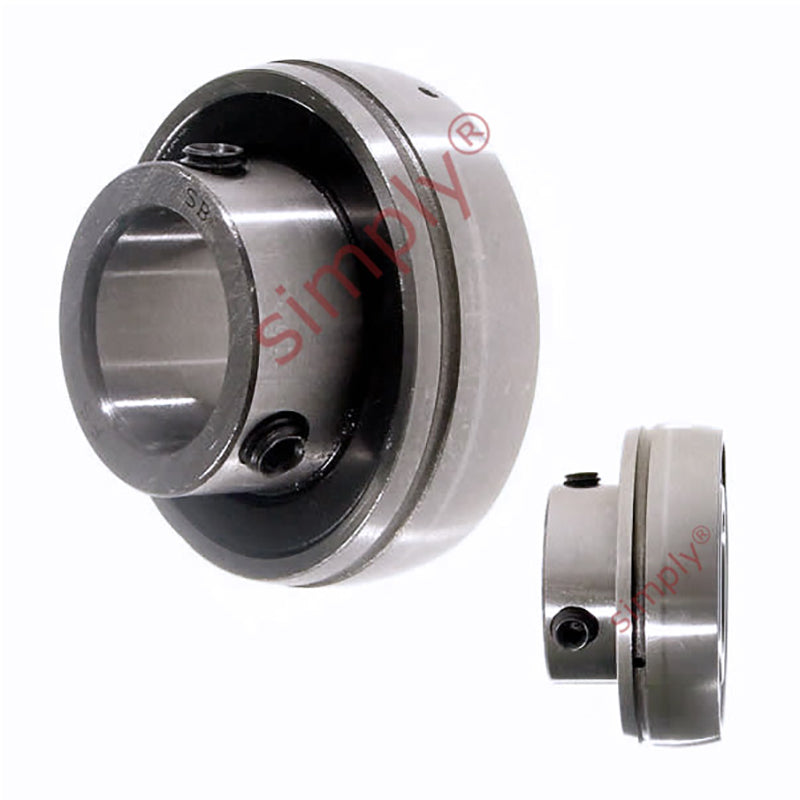

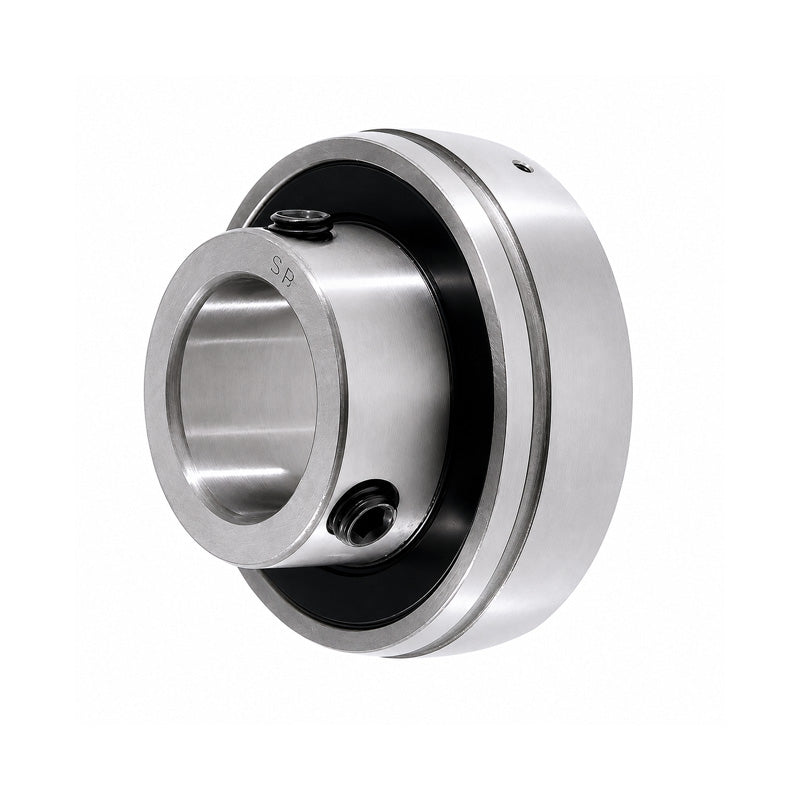

SB Stainless Steel Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.
Benefits: Cost effective bearing insert, grub screw fixing, flat back design
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
Technical
Technical
| Shaft Dia | 20mm |
|---|---|
| Be | 14mm |
| D | 47mm |
| Bi | 25mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| ds | M6X1.0 |
| Dynamic Load | 1000 kgf |
| Static Load | 630 kgf |
| Weight | 0.15kg |
