SKU: SSBP.PL.207

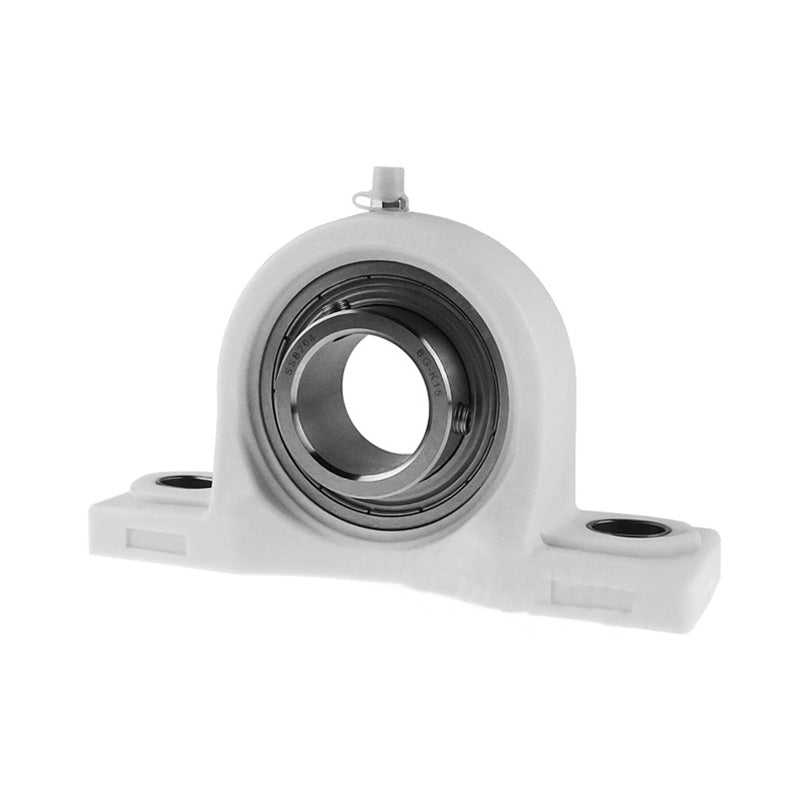

SSBPPL207 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert
SSBPPL207 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert
Regular price
$56.21
ex VAT
Regular price
Sale price
$56.21
ex VAT
In stock
Price Break
10+
$50.03
19+
$47.22
29+
$46.65
39+
$46.09
49+
$45.53
74+
$44.97
99+
$42.16
199+
$41.60
249+
$41.03
499+
$40.47
999+
$39.35
Description
Description
SSBPPL Thermo Plastic Two Bolt Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBP
- Bolt Hole Centres:
- 127mm
Technical
Technical
| d | 35mm |
|---|---|
| h | 48mm |
| a | 168mm |
| e | 127mm |
| b | 48mm |
| g | 18mm |
| s1 | 14mm |
| s2 | 18mm |
| w | 94.5mm |
| Bi | 43mm |
| n | 17.5mm |
| Bolt | 12mm |
| Weight | 0.25kg |
| Temperature Range | -35 to 102 deg C |
