SKU: SSBP.PL.208

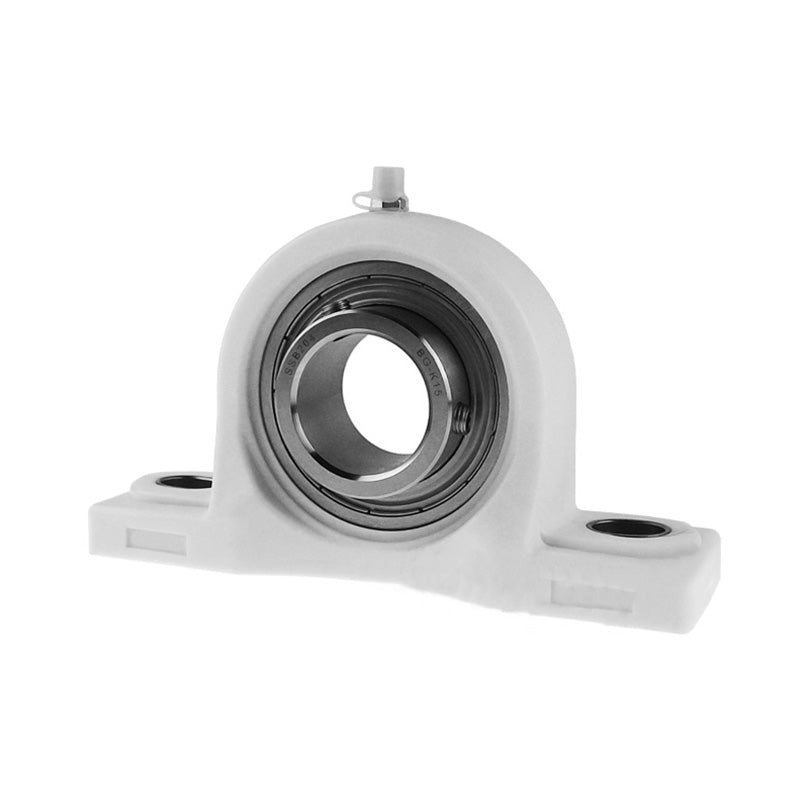

SSBPPL208 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 40mm Bore Stainless Insert
SSBPPL208 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 40mm Bore Stainless Insert
Regular price
$65.98
ex VAT
Regular price
Sale price
$65.98
ex VAT
In stock
Price Break
10+
$58.72
19+
$55.42
29+
$54.76
39+
$54.10
49+
$53.44
74+
$52.78
99+
$49.49
199+
$48.83
249+
$48.17
499+
$47.51
999+
$46.19
Couldn't load pickup availability
Description
Description
SSBPPL Thermo Plastic Two Bolt Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBP
- Bolt Hole Centres:
- 137mm

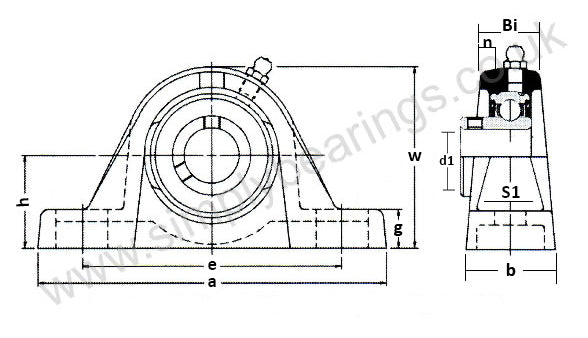

Technical
Technical
| d | 40mm |
|---|---|
| h | 49mm |
| a | 184mm |
| e | 137mm |
| b | 54mm |
| g | 20mm |
| s1 | 14mm |
| s2 | 18mm |
| w | 99mm |
| Bi | 49mm |
| n | 19mm |
| Bolt | 12mm |
| Weight | 0.35kg |
| Temperature Range | -35 to 102 deg C |
