SKU: SSBPA.PL.206

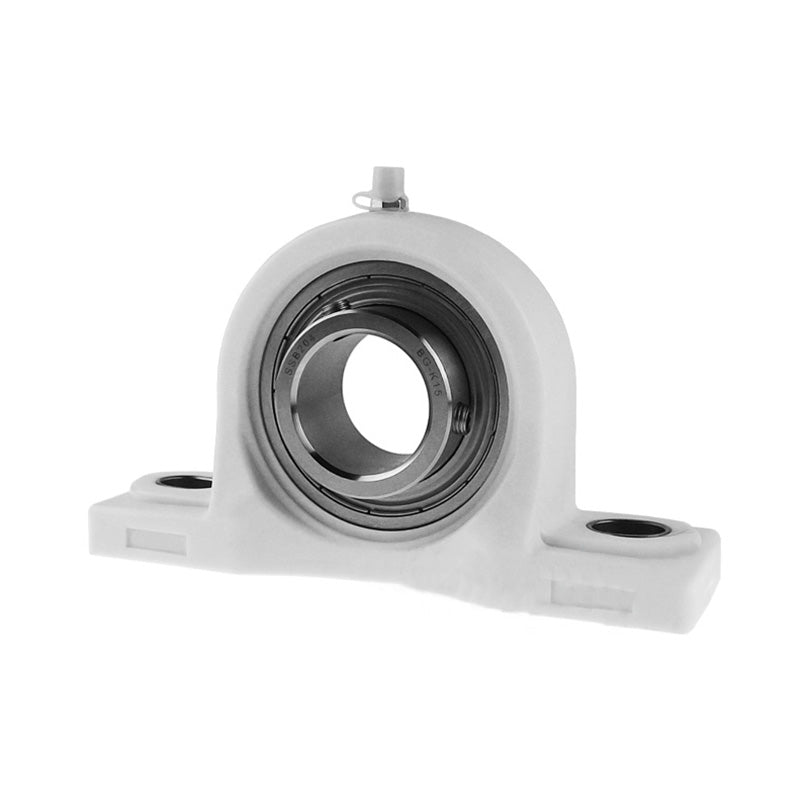

SSBPAPL206 Metric Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with 30mm Bore Stainless Insert
SSBPAPL206 Metric Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with 30mm Bore Stainless Insert
Regular price
$29.77
ex VAT
Regular price
Sale price
$29.77
ex VAT
In stock
Price Break
10+
$26.50
19+
$25.01
29+
$24.71
39+
$24.41
49+
$24.11
74+
$23.82
99+
$22.33
199+
$22.03
249+
$21.73
499+
$21.43
999+
$20.84
Description
Description
SSBPAPL Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBPA
- Bolt Hole Centres:
- 76mm

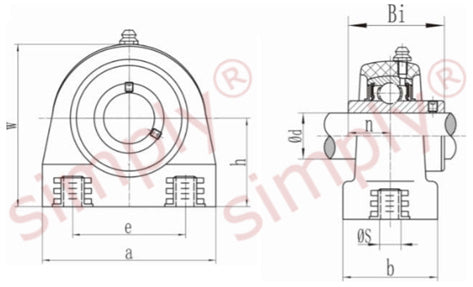

Technical
Technical
| d | 30mm |
|---|---|
| a | 102mm |
| e | 76mm |
| b | 42.5mm |
| g | L |
| s | i |
| Bi | 38mm |
| n | 16mm |
| Bolt | 10mm |
| Weight | 0.24kg |
| Temperature Range | -35 to 102 deg C |
