SKU: SSUC.204-12

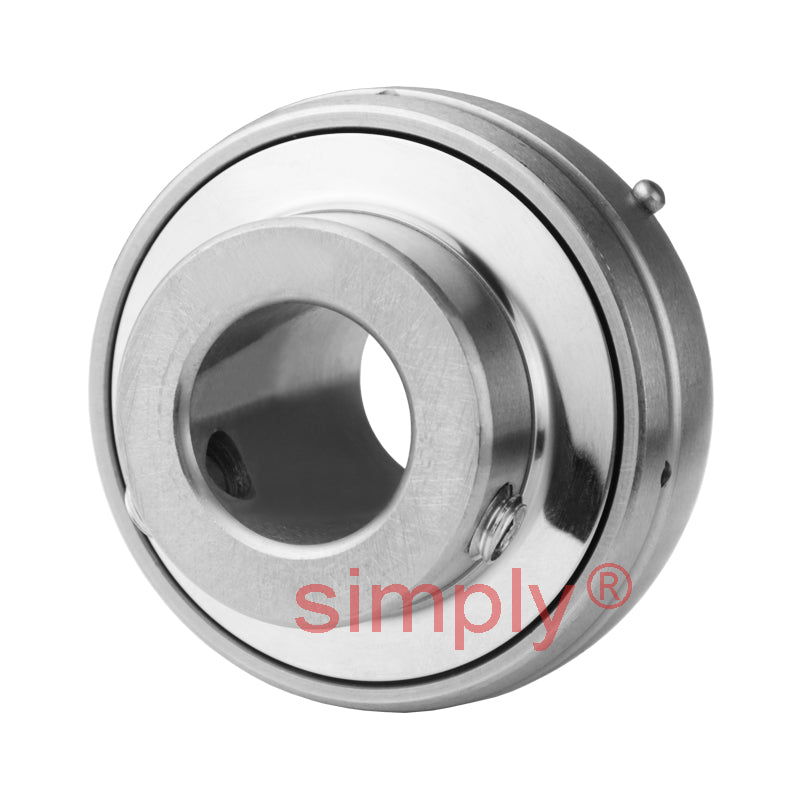

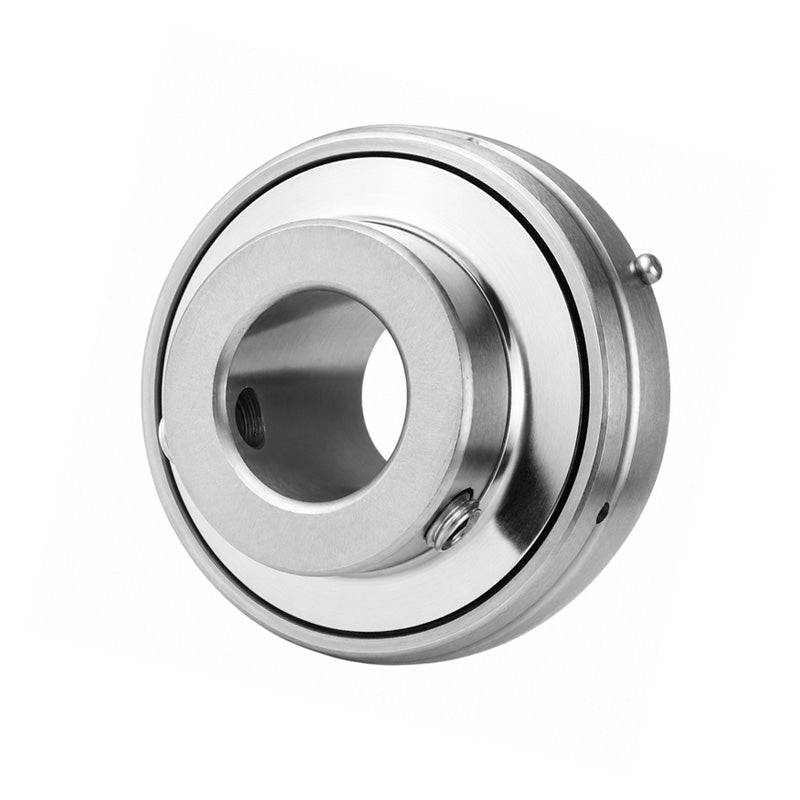

SSUC204-12 Imperial Stainless Steel Bearing Insert with 3/4 inch Bore 47mm Outside Dia
SSUC204-12 Imperial Stainless Steel Bearing Insert with 3/4 inch Bore 47mm Outside Dia
Regular price
$12.28
ex VAT
Regular price
Sale price
$12.28
ex VAT
In stock
Price Break
10+
$10.93
19+
$10.32
29+
$10.19
39+
$10.07
49+
$9.95
74+
$9.82
99+
$9.21
199+
$9.09
249+
$8.96
499+
$8.84
999+
$8.60
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- SSUC
Technical
Technical
| d | 3/4 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
