SKU: SSUC.207-20

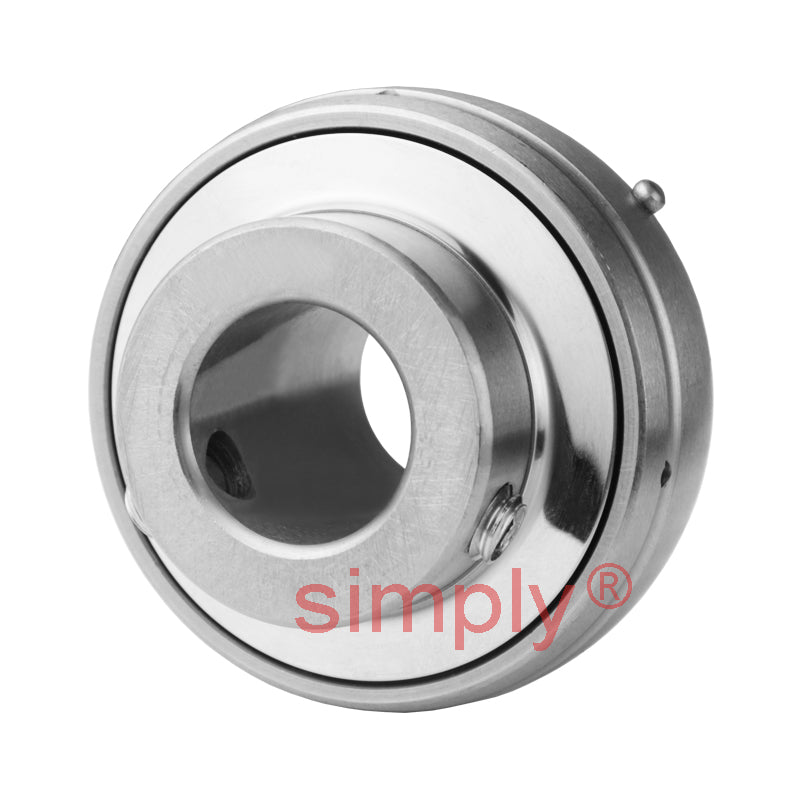

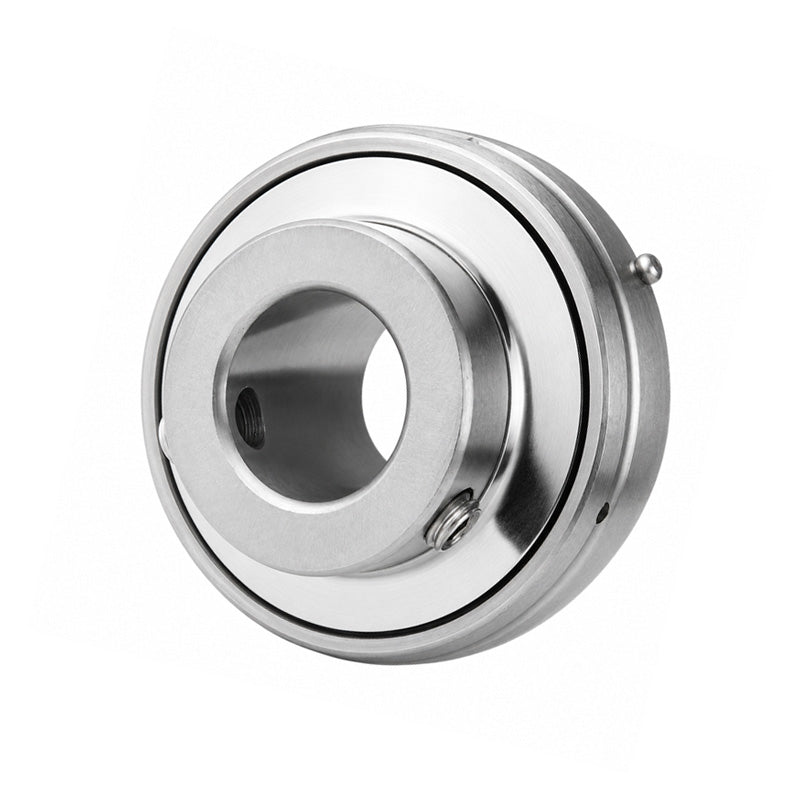

SSUC207-20 Imperial Stainless Steel Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia
SSUC207-20 Imperial Stainless Steel Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia
Regular price
$30.63
ex VAT
Regular price
Sale price
$30.63
ex VAT
In stock
Price Break
10+
$27.26
19+
$25.73
29+
$25.42
39+
$25.12
49+
$24.81
74+
$24.50
99+
$22.97
199+
$22.67
249+
$22.36
499+
$22.05
999+
$21.44
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Style:
- SSUC
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.54 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
