SKU: SSUC.209

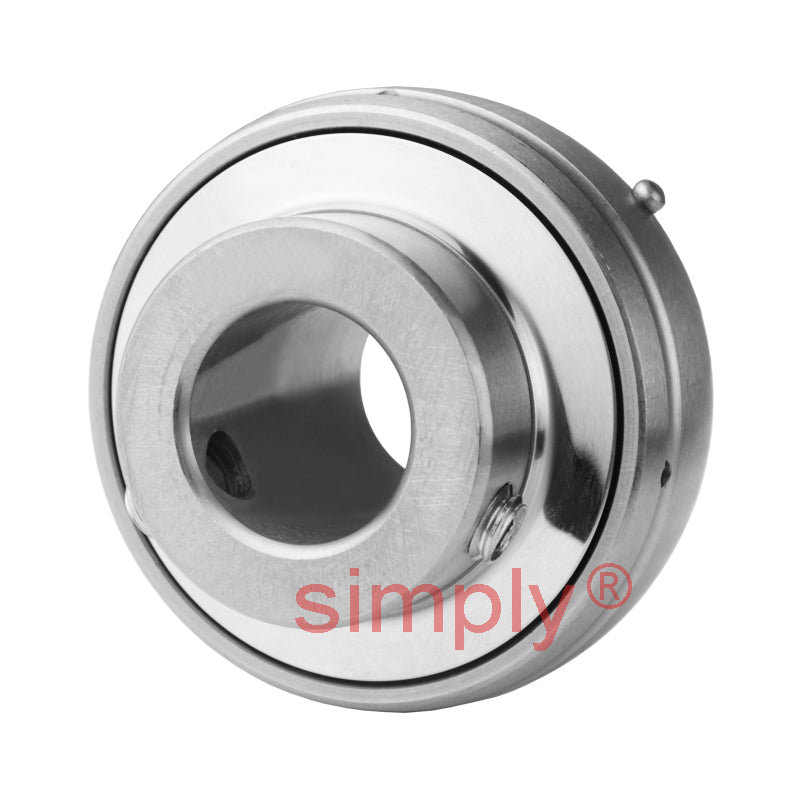

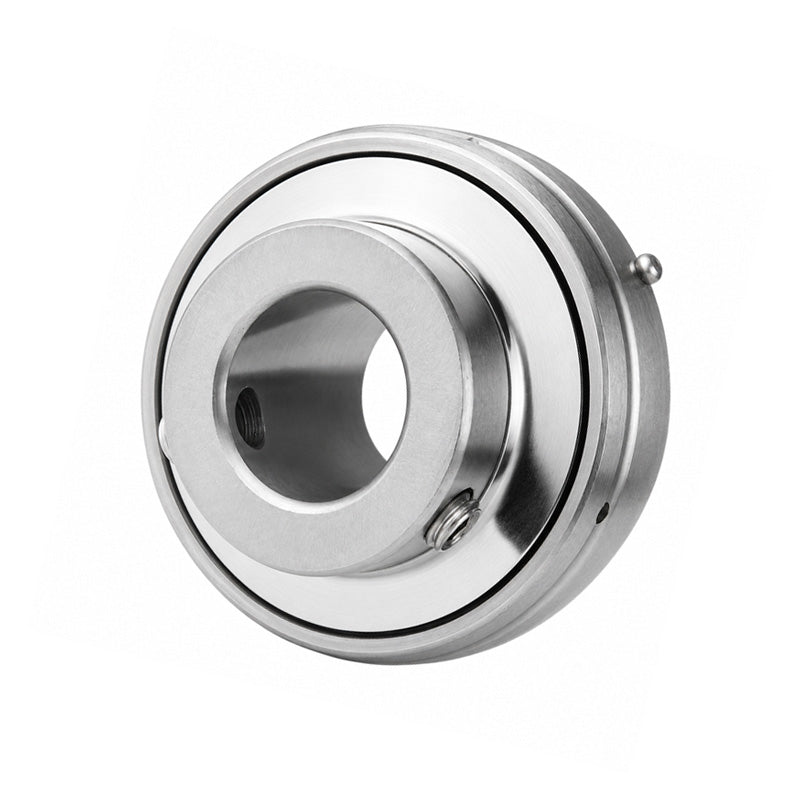

SSUC209 Metric Stainless Steel Bearing Insert with 45mm Bore 85mm Outside Dia
SSUC209 Metric Stainless Steel Bearing Insert with 45mm Bore 85mm Outside Dia
Regular price
$45.99
ex VAT
Regular price
Sale price
$45.99
ex VAT
In stock
Price Break
10+
$40.93
19+
$38.63
29+
$38.17
39+
$37.71
49+
$37.25
74+
$36.79
99+
$34.49
199+
$34.03
249+
$33.57
499+
$33.11
999+
$32.19
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- SSUC
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| n | 19mm |
| m | 30.2mm |
| G | 10mm |
| Grub screw | M8x1.0 |
| Weight | 0.68 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
