SKU: SSUCP.208

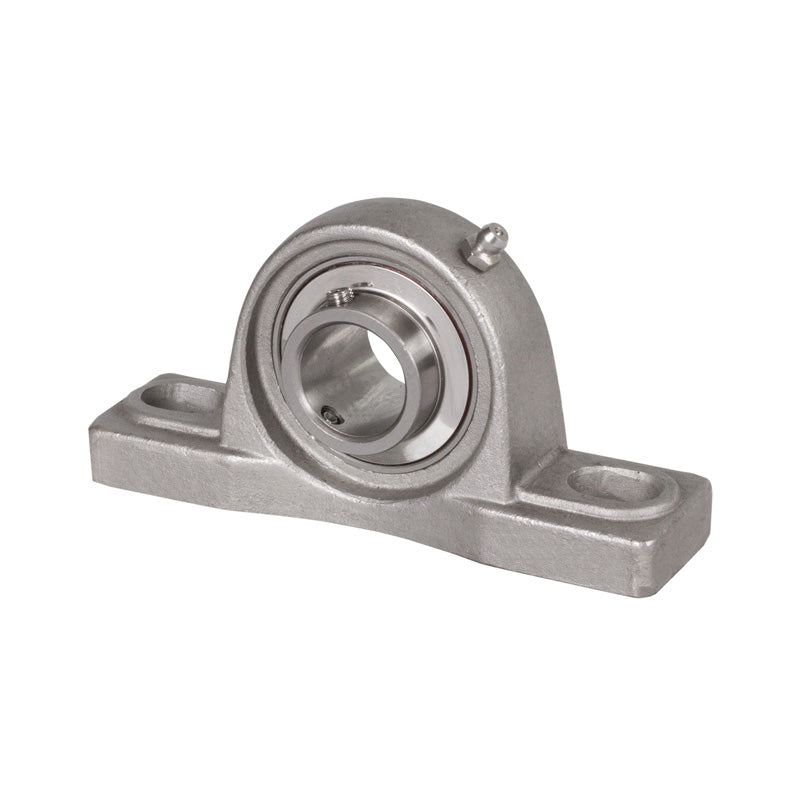

SSUCP208 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 40mm Bore Stainless Insert
SSUCP208 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 40mm Bore Stainless Insert
Regular price
$85.10
ex VAT
Regular price
Sale price
$85.10
ex VAT
Equivalent to: NP40
In stock
Price Break
10+
$75.74
19+
$71.48
29+
$70.63
39+
$69.78
49+
$68.93
74+
$68.08
99+
$63.83
199+
$62.97
249+
$62.12
499+
$61.27
999+
$59.57
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP40
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 136mm
Technical
Technical
| d | 40mm |
|---|---|
| h | 49.2mm |
| a | 184mm |
| e | 136mm |
| b | 54mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 19mm |
| w | 98mm |
| B1 | 49.2mm |
| n | 19mm |
| Bolt | 14mm |
| Weight | 2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
