SKU: SSUCP.216

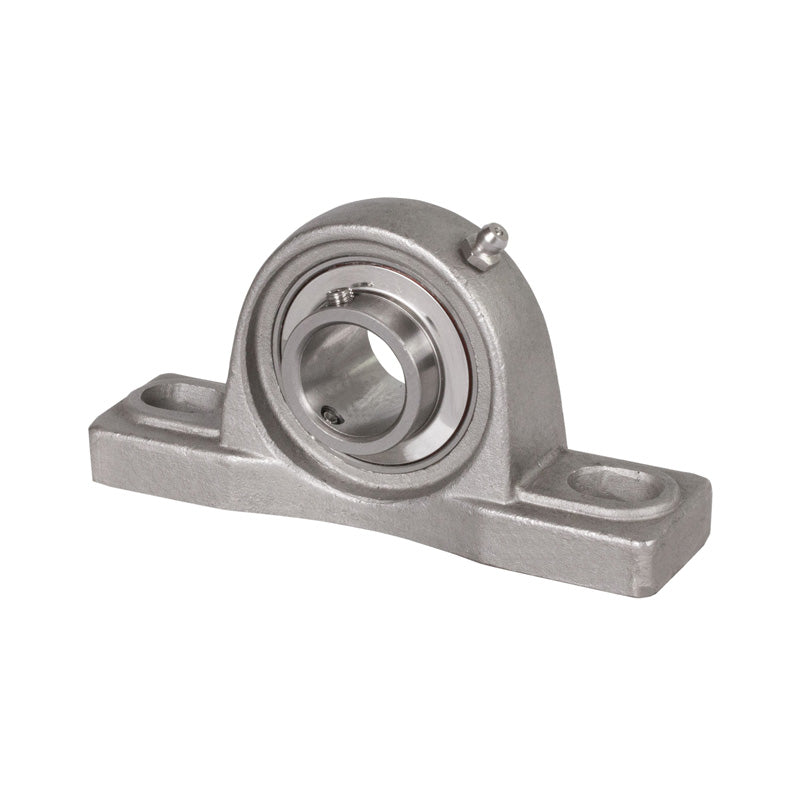

SSUCP216 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 80mm Bore Stainless Insert
SSUCP216 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 80mm Bore Stainless Insert
Regular price
$491.02
ex VAT
Regular price
Sale price
$491.02
ex VAT
Equivalent to: NP80
In stock
Price Break
10+
$437.01
19+
$412.46
29+
$407.55
39+
$402.64
49+
$397.73
74+
$392.82
99+
$368.27
199+
$363.35
249+
$358.44
499+
$353.53
999+
$343.71
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP80
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 232mm
Technical
Technical
| d | 80mm |
|---|---|
| h | 88.9mm |
| a | 292mm |
| e | 232mm |
| b | 78mm |
| s2 | 31mm |
| s1 | 25mm |
| g | 30mm |
| w | 175mm |
| B1 | 82.6mm |
| n | 33.3mm |
| Bolt | 20mm |
| Weight | 9 kg |
| Dynamic load | 5700 kgf |
| Static load | 4550 kgf |
| Rec max speed | 2150 rpm |
