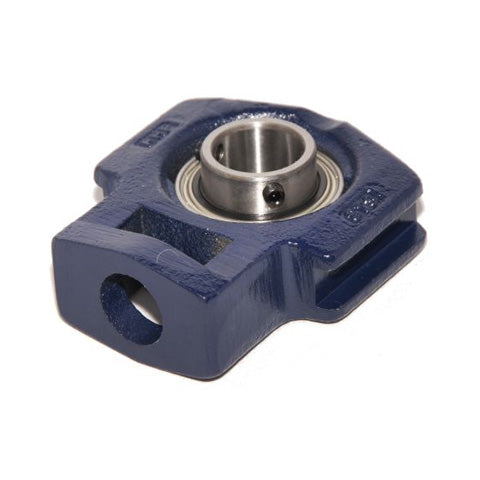

• RHP ST1-1/2 Cast Iron Take Up Unit and 1-1/2 inch Bore Insert
1 1

SKU: ST1.1/2-RHP

RHP ST1-1/2 Cast Iron Take Up Unit and 1-1/2 inch Bore Insert

RHP ST1-1/2 Cast Iron Take Up Unit and 1-1/2 inch Bore Insert
$102.26 ex VAT
$102.26 ex VAT
Sale Sold out

In stock

Price Break
10+ $91.01
19+ $85.90
29+ $84.88
39+ $83.85
49+ $82.83
74+ $81.81
99+ $76.70
199+ $75.67
249+ $74.65
499+ $73.63
999+ $71.58
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
ST
Technical
Bore 1-1/2 inch
L 5.65 inch
L1 3.512 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B 1.938 inch
s 0.752 inch
d1 2.075 inch
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 2.7 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-1/2G+insonly">1040-1-1/2G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
