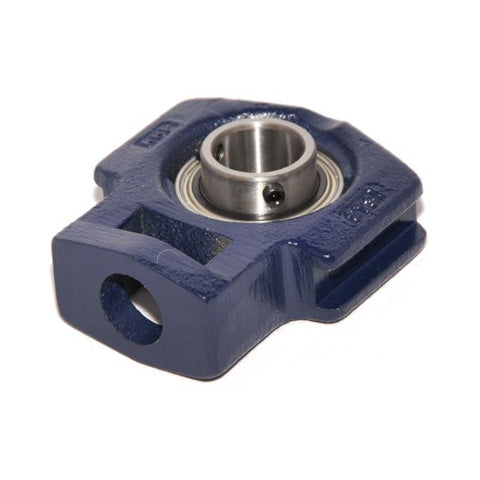

• RHP ST1-5/8 Cast Iron Take Up Unit and 1-5/8 inch Bore Insert
1 1

SKU: ST1.5/8-RHP

RHP ST1-5/8 Cast Iron Take Up Unit and 1-5/8 inch Bore Insert

RHP ST1-5/8 Cast Iron Take Up Unit and 1-5/8 inch Bore Insert
$115.30 ex VAT
$115.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $102.62
19+ $96.85
29+ $95.70
39+ $94.55
49+ $93.39
74+ $92.24
99+ $86.48
199+ $85.32
249+ $84.17
499+ $83.02
999+ $80.71
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
41.28mm = 1.625 (1-5/8) inch
Style:
ST
Technical
Bore 1-5/8 inch
L 5.787 inch
L1 3.512 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B 1.938 inch
s 0.752 inch
d1 2.256 inch
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-5/8G+insonly">1045-1-5/8G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
