• RHP ST2-15/16DEC Cast Iron Take Up Unit and 2-15/16 inch Bore Insert
1 1

SKU: ST2.15/16DEC-RHP

RHP ST2-15/16DEC Cast Iron Take Up Unit and 2-15/16 inch Bore Insert

RHP ST2-15/16DEC Cast Iron Take Up Unit and 2-15/16 inch Bore Insert
$484.71 ex VAT
$484.71 ex VAT
Sale Sold out

In stock

Price Break
10+ $431.39
19+ $407.16
29+ $402.31
39+ $397.46
49+ $392.62
74+ $387.77
99+ $363.53
199+ $358.69
249+ $353.84
499+ $348.99
999+ $339.30
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

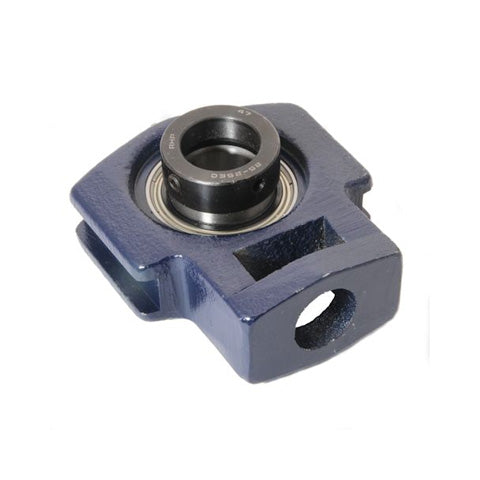

RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
74.61mm = 2.937 (2-15/16) inch
Style:
ST
Technical
Bore 2-15/16 inch
L 8.76 inch
L1 5.413 inch
L2 0.846 inch
L3 1.26 inch
L4 4.744 inch
L5 3.031 inch
H 6.555 inch
H1 4.449 inch
H2 2.756 inch
H3 5.937 inch
N 1.654 inch
A 2.756 inch
A1 1.988 inch
A2 1.063 inch
B3 3.611 inch
s2 1.471 inch
d2 4 inch
Dynamic load 66000 N
Static load 49500 N
Rec max speed 2300 rpm
Weight 8.4 kg
Insert <a href="advanced_search_result.php?keywords=1075-2-15/16DECG+insonly">1075-2-15/16DECG Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
