• RHP ST2-7/16DEC Cast Iron Take Up Unit and 2-7/16 inch Bore Insert
1 1

SKU: ST2.7/16DEC-RHP

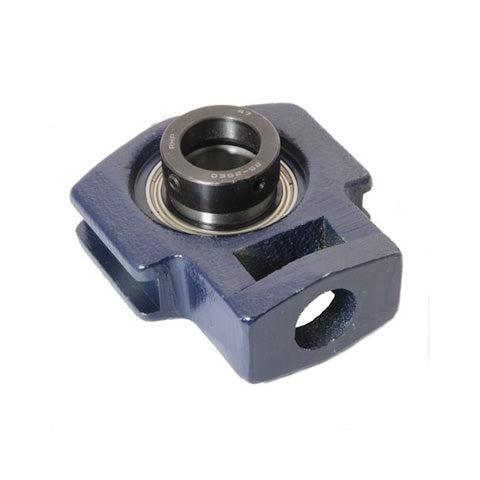

RHP ST2-7/16DEC Cast Iron Take Up Unit and 2-7/16 inch Bore Insert

RHP ST2-7/16DEC Cast Iron Take Up Unit and 2-7/16 inch Bore Insert
$240.51 ex VAT
$240.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $214.05
19+ $202.03
29+ $199.62
39+ $197.22
49+ $194.81
74+ $192.41
99+ $180.38
199+ $177.98
249+ $175.57
499+ $173.17
999+ $168.36
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Style:
ST
Technical
Bore 2-7/16 inch
L 7.559 inch
L1 4.685 inch
L2 0.748 inch
L3 1.26 inch
L4 3.839 inch
L5 2.756 inch
H 5.748 inch
H1 3.976 inch
H2 2.52 inch
H3 5.118 inch
N 1.378 inch
A 2.5 inch
A1 1.831 inch
A2 1.063 inch
B3 3.064 inch
s2 1.221 inch
d2 3.312 inch
Dynamic load 48000 N
Static load 33000 N
Rec max speed 2800 rpm
Weight 5.4 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-7/16DECG+insonly">1060-2-7/16DECG Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
