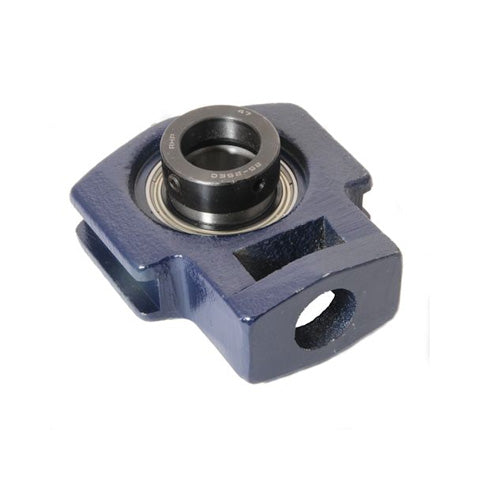

• RHP ST20EC Cast Iron Take Up Unit and 20mm Bore Insert
1 1

SKU: ST20EC-RHP

RHP ST20EC Cast Iron Take Up Unit and 20mm Bore Insert

RHP ST20EC Cast Iron Take Up Unit and 20mm Bore Insert
$54.33 ex VAT
$54.33 ex VAT
Sale Sold out

In stock

Price Break
10+ $48.35
19+ $45.64
29+ $45.09
39+ $44.55
49+ $44.01
74+ $43.46
99+ $40.75
199+ $40.20
249+ $39.66
499+ $39.12
999+ $38.03
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST EC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Style:
ST
Technical
Bore 20mm
L 95.5mm
L1 62mm
L2 11.5mm
L3 16mm
L4 50.5mm
L5 36.5mm
H 88.5mm
H1 58.5mm
H2 32mm
H3 76mm
N 22.5mm
A 36mm
A1 27.5mm
A2 13.5mm
B2 30.92mm
s1 7.56mm
d2 33.3mm
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1220-20ECG+insonly">1220-20ECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
