SKU: ST30-RHP

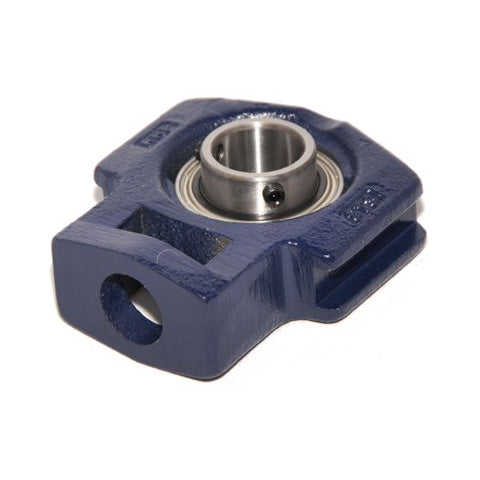

RHP ST30 Cast Iron Take Up Unit and 30mm Bore Insert
RHP ST30 Cast Iron Take Up Unit and 30mm Bore Insert
Regular price
$71.84
ex VAT
Regular price
Sale price
$71.84
ex VAT
In stock
Price Break
10+
$63.94
19+
$60.35
29+
$59.63
39+
$58.91
49+
$58.19
74+
$57.47
99+
$53.88
199+
$53.16
249+
$52.44
499+
$51.72
999+
$50.29
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- ST
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 115.5mm |
| L1 | 71.7mm |
| L2 | 12.5mm |
| L3 | 16.5mm |
| L4 | 64.5mm |
| L5 | 43mm |
| H | 101.5mm |
| H1 | 64.5mm |
| H2 | 37.5mm |
| H3 | 89mm |
| N | 22.5mm |
| A | 36.5mm |
| A1 | 30mm |
| A2 | 13.5mm |
| B | 38.1mm |
| s | 15.93mm |
| d1 | 40mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-30G+insonly">1030-30G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
