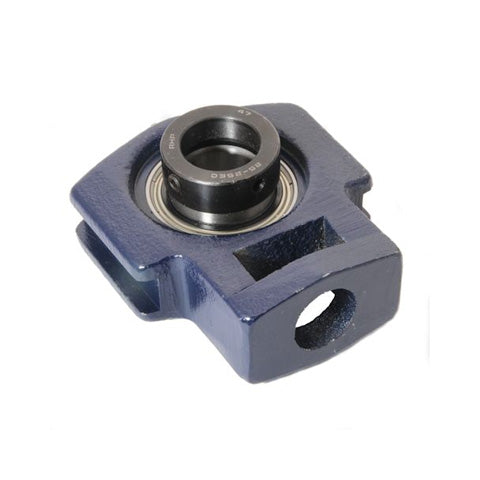

• RHP ST30DEC Cast Iron Take Up Unit and 30mm Bore Insert
1 1

SKU: ST30DEC-RHP

RHP ST30DEC Cast Iron Take Up Unit and 30mm Bore Insert

RHP ST30DEC Cast Iron Take Up Unit and 30mm Bore Insert
$83.27 ex VAT
$83.27 ex VAT
Sale Sold out

In stock

Price Break
10+ $74.11
19+ $69.95
29+ $69.11
39+ $68.28
49+ $67.45
74+ $66.62
99+ $62.45
199+ $61.62
249+ $60.79
499+ $59.95
999+ $58.29
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
ST
Technical
Bore 30mm
L 115.5mm
L1 71.7mm
L2 12.5mm
L3 16.5mm
L4 64.5mm
L5 43mm
H 101.5mm
H1 64.5mm
H2 37.5mm
H3 89mm
N 22.5mm
A 36.5mm
A1 30mm
A2 13.5mm
B3 48.42mm
s2 18.32mm
d2 44.45mm
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1030-30DECG+insonly">1030-30DECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
