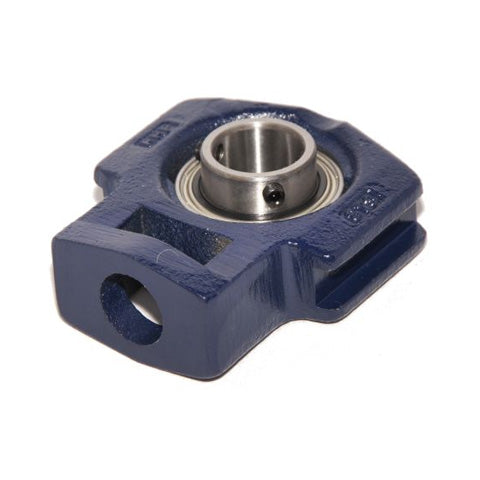

• RHP ST35 Cast Iron Take Up Unit and 35mm Bore Insert
1 1

SKU: ST35-RHP

RHP ST35 Cast Iron Take Up Unit and 35mm Bore Insert

RHP ST35 Cast Iron Take Up Unit and 35mm Bore Insert
$82.53 ex VAT
$82.53 ex VAT
Sale Sold out

In stock

Price Break
10+ $73.45
19+ $69.33
29+ $68.50
39+ $67.67
49+ $66.85
74+ $66.02
99+ $61.90
199+ $61.07
249+ $60.25
499+ $59.42
999+ $57.77
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
ST
Technical
Bore 35mm
L 124mm
L1 75.5mm
L2 12.5mm
L3 16.5mm
L4 64.5mm
L5 43mm
H 101.5mm
H1 64.5mm
H2 37.5mm
H3 89mm
N 22.5mm
A 36.5mm
A1 30mm
A2 13.5mm
B 42.88mm
s 17.53mm
d1 46.69mm
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1035-35G+insonly">1035-35G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
