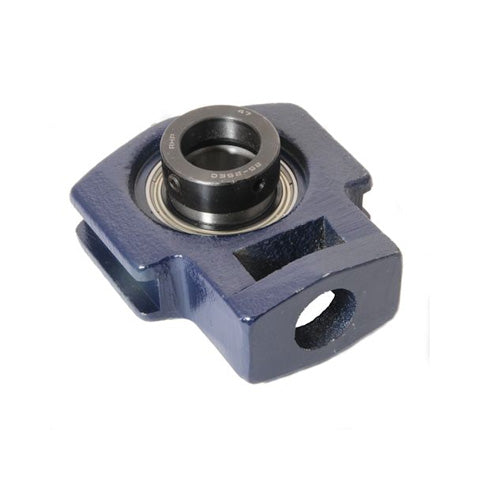

• RHP ST40EC Cast Iron Take Up Unit and 40mm Bore Insert
1 1

SKU: ST40EC-RHP

RHP ST40EC Cast Iron Take Up Unit and 40mm Bore Insert

RHP ST40EC Cast Iron Take Up Unit and 40mm Bore Insert
$103.63 ex VAT
$103.63 ex VAT
Sale Sold out

In stock

Price Break
10+ $92.23
19+ $87.05
29+ $86.01
39+ $84.98
49+ $83.94
74+ $82.90
99+ $77.72
199+ $76.69
249+ $75.65
499+ $74.61
999+ $72.54
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST EC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
ST
Technical
Bore 40mm
L 143.5mm
L1 89.2mm
L2 15.5mm
L3 20.5mm
L4 81.5mm
L5 50.5mm
H 118mm
H1 82.5mm
H2 49.5mm
H3 101mm
N 29mm
A 49.5mm
A1 37mm
A2 17.5mm
B2 43.64mm
s1 11.05mm
d2 60.3mm
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 2.7 kg
Insert <a href="advanced_search_result.php?keywords=1240-40ECG+insonly">1240-40ECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
