• RHP ST45 Cast Iron Take Up Unit and 45mm Bore Insert
1 1

SKU: ST45-RHP

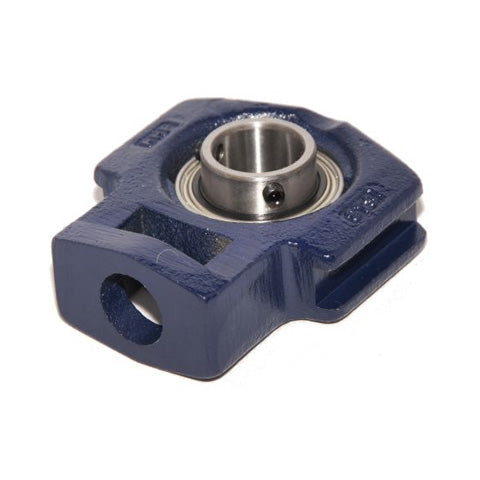

RHP ST45 Cast Iron Take Up Unit and 45mm Bore Insert

RHP ST45 Cast Iron Take Up Unit and 45mm Bore Insert
$108.67 ex VAT
$108.67 ex VAT
Sale Sold out

In stock

Price Break
10+ $96.72
19+ $91.28
29+ $90.20
39+ $89.11
49+ $88.02
74+ $86.94
99+ $81.50
199+ $80.42
249+ $79.33
499+ $78.24
999+ $76.07
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
ST
Technical
Bore 45mm
L 147mm
L1 89.2mm
L2 15.5mm
L3 20.5mm
L4 81.5mm
L5 50.5mm
H 118mm
H1 82.5mm
H2 49.5mm
H3 101mm
N 29mm
A 49.5mm
A1 37mm
A2 17.5mm
B 49.23mm
s 19.1mm
d1 57.3mm
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
