SKU: ST50-RHP

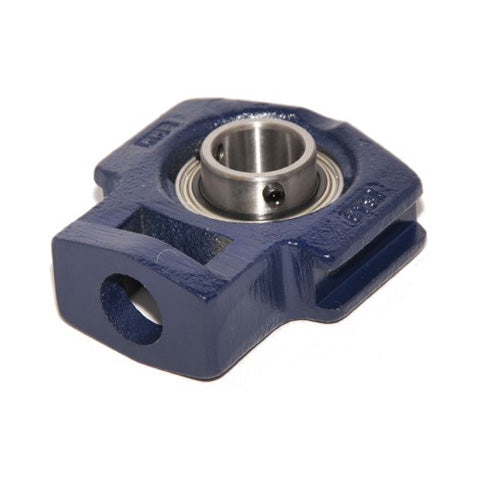

RHP ST50 Cast Iron Take Up Unit and 50mm Bore Insert
RHP ST50 Cast Iron Take Up Unit and 50mm Bore Insert
Regular price
$119.69
ex VAT
Regular price
Sale price
$119.69
ex VAT
In stock
Price Break
10+
$106.52
19+
$100.54
29+
$99.34
39+
$98.15
49+
$96.95
74+
$95.75
99+
$89.77
199+
$88.57
249+
$87.37
499+
$86.18
999+
$83.78
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- ST
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 151mm |
| L1 | 90.5mm |
| L2 | 15.5mm |
| L3 | 20.5mm |
| L4 | 81.5mm |
| L5 | 50.5mm |
| H | 118mm |
| H1 | 82.5mm |
| H2 | 49.5mm |
| H3 | 101mm |
| N | 29mm |
| A | 49.5mm |
| A1 | 37mm |
| A2 | 17.5mm |
| B | 51.59mm |
| s | 19.1mm |
| d1 | 62.2mm |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
