• RHP ST50DEC Cast Iron Take Up Unit and 50mm Bore Insert
1 1

SKU: ST50DEC-RHP

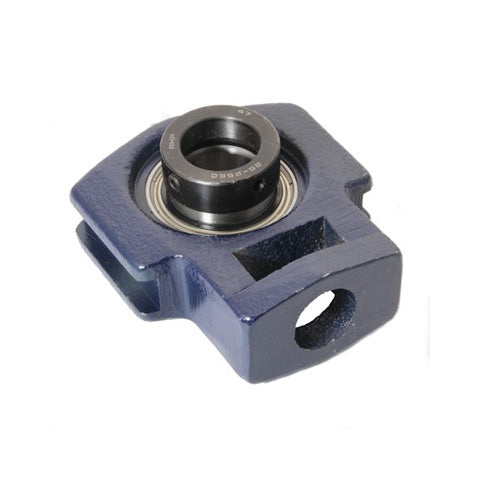

RHP ST50DEC Cast Iron Take Up Unit and 50mm Bore Insert

RHP ST50DEC Cast Iron Take Up Unit and 50mm Bore Insert
$142.21 ex VAT
$142.21 ex VAT
Sale Sold out

In stock

Price Break
10+ $126.57
19+ $119.46
29+ $118.03
39+ $116.61
49+ $115.19
74+ $113.77
99+ $106.66
199+ $105.24
249+ $103.81
499+ $102.39
999+ $99.55
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
ST
Technical
Bore 50mm
L 151mm
L1 90.5mm
L2 15.5mm
L3 20.5mm
L4 81.5mm
L5 50.5mm
H 118mm
H1 82.5mm
H2 49.5mm
H3 101mm
N 29mm
A 49.5mm
A1 37mm
A2 17.5mm
B3 62.7mm
s2 24.65mm
d2 69.85mm
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1050-50DECG+insonly">1050-50DECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
