• RHP ST55DEC Cast Iron Take Up Unit and 55mm Bore Insert
1 1

SKU: ST55DEC-RHP

RHP ST55DEC Cast Iron Take Up Unit and 55mm Bore Insert

RHP ST55DEC Cast Iron Take Up Unit and 55mm Bore Insert
$182.49 ex VAT
$182.49 ex VAT
Sale Sold out

In stock

Price Break
10+ $162.42
19+ $153.29
29+ $151.47
39+ $149.64
49+ $147.82
74+ $145.99
99+ $136.87
199+ $135.04
249+ $133.22
499+ $131.39
999+ $127.74
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

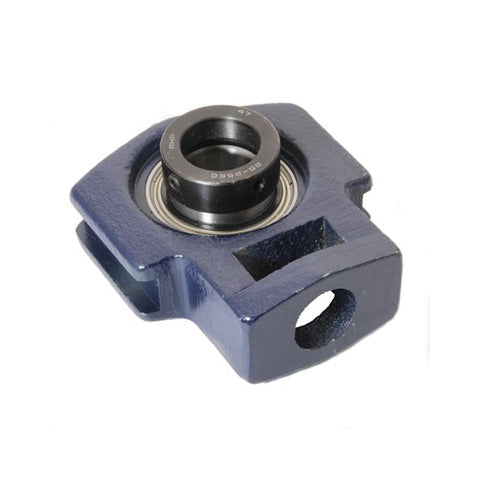

RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
55mm
Style:
ST
Technical
Bore 55mm
L 182mm
L1 114mm
L2 19mm
L3 32mm
L4 97.5mm
L5 70mm
H 146mm
H1 101mm
H2 64mm
H3 130mm
N 35mm
A 63.5mm
A1 46.5mm
A2 27mm
B3 71.44mm
s2 27.82mm
d2 76.2mm
Dynamic load 43500 N
Static load 29200 N
Rec max speed 3100 rpm
Weight 4.2 kg
Insert <a href="advanced_search_result.php?keywords=1055-55DECG+insonly">1055-55DECG Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
