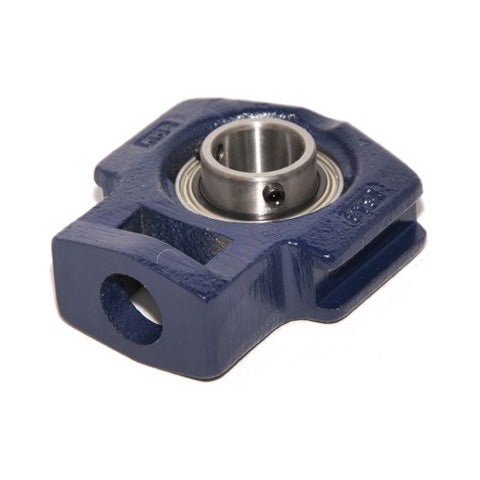

• RHP ST60 Cast Iron Take Up Unit and 60mm Bore Insert
1 1

SKU: ST60-RHP

RHP ST60 Cast Iron Take Up Unit and 60mm Bore Insert

RHP ST60 Cast Iron Take Up Unit and 60mm Bore Insert
$203.28 ex VAT
$203.28 ex VAT
Sale Sold out

In stock

Price Break
10+ $180.92
19+ $170.76
29+ $168.72
39+ $166.69
49+ $164.66
74+ $162.62
99+ $152.46
199+ $150.43
249+ $148.39
499+ $146.36
999+ $142.30
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
60mm
Style:
ST
Technical
Bore 60mm
L 192mm
L1 119mm
L2 19mm
L3 32mm
L4 97.5mm
L5 70mm
H 146mm
H1 101mm
H2 64mm
H3 130mm
N 35mm
A 63.5mm
A1 46.5mm
A2 27mm
B 65.07mm
s 25.45mm
d1 75.34mm
Dynamic load 48000 N
Static load 33000 N
Rec max speed 2800 rpm
Weight 5.4 kg
Insert <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
