SKU: SUCT.PL.202

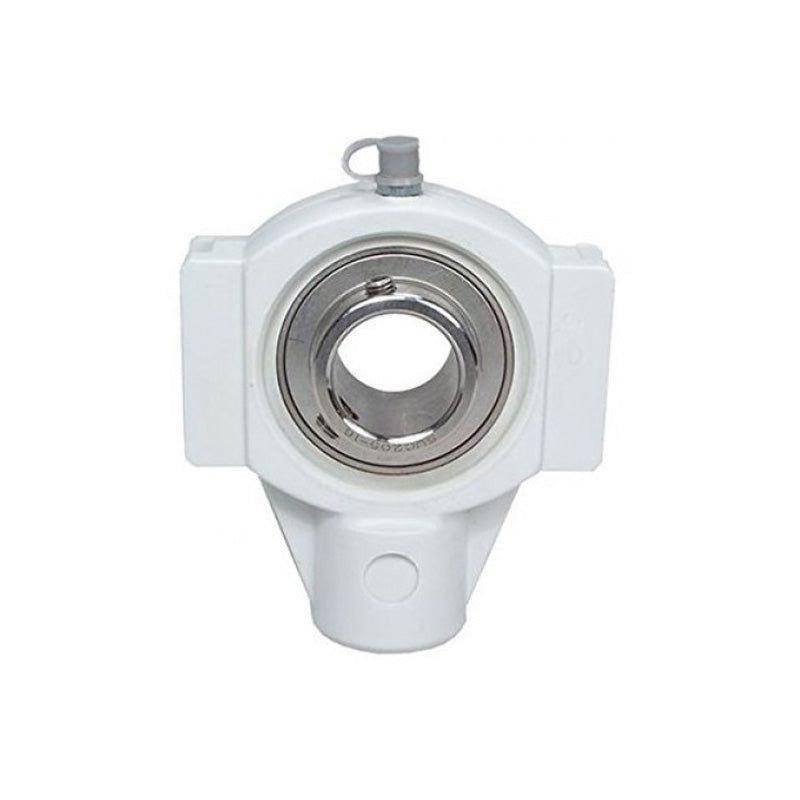

SUCTPL202 Metric Thermo Plastic Take Up Unit Housing with 15mm Bore Stainless Insert
SUCTPL202 Metric Thermo Plastic Take Up Unit Housing with 15mm Bore Stainless Insert
Regular price
$11.48
ex VAT
Regular price
Sale price
$11.48
ex VAT
In stock
Price Break
10+
$10.22
19+
$9.64
29+
$9.53
39+
$9.41
49+
$9.30
74+
$9.18
99+
$8.61
199+
$8.50
249+
$8.38
499+
$8.27
999+
$8.04
Description
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCT
Technical
Technical
| d | 15mm |
|---|---|
| a | 99mm |
| c | 27.5mm |
| d | 12mm |
| h | 64mm |
| m | 76mm |
| s | M16 |
| t | 36mm |
| v | 88mm |
| w | 47mm |
| B | 31mm |
| n | 12.7mm |
| Weight | 0.79 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Temperature Range | -35 to 102 deg C |
