SKU: SUCT.PL.207

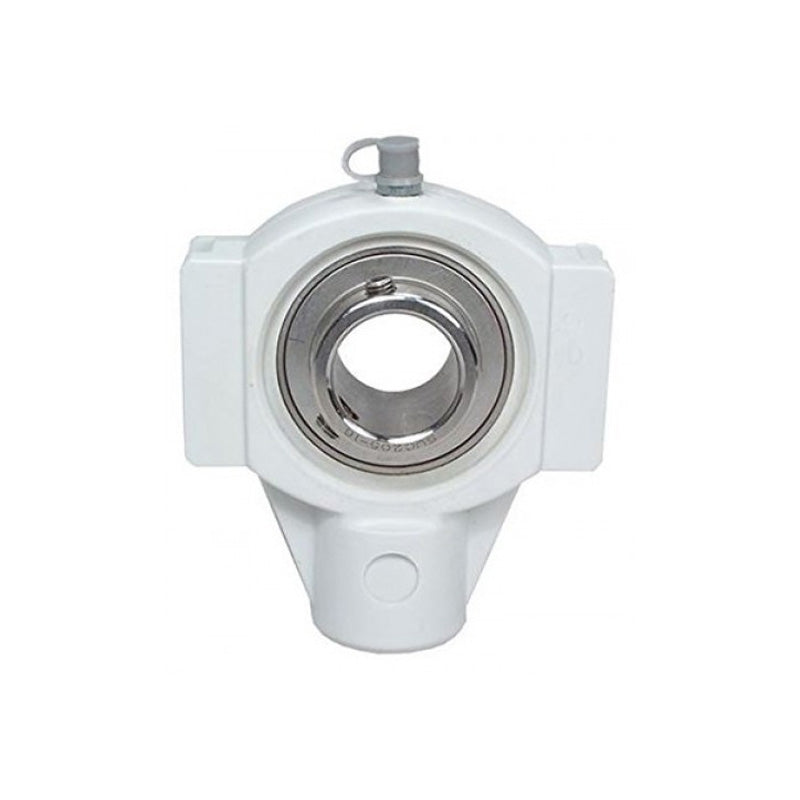

SUCTPL207 Metric Thermo Plastic Take Up Unit Housing with 35mm Bore Stainless Insert
SUCTPL207 Metric Thermo Plastic Take Up Unit Housing with 35mm Bore Stainless Insert
Regular price
$47.79
ex VAT
Regular price
Sale price
$47.79
ex VAT
Equivalent to: PST35CR
In stock
Price Break
10+
$42.53
19+
$40.14
29+
$39.67
39+
$39.19
49+
$38.71
74+
$38.23
99+
$35.84
199+
$35.36
249+
$34.89
499+
$34.41
999+
$33.45
Description
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PST35CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCT
Technical
Technical
| d | 35mm |
|---|---|
| a | 125mm |
| c | 34.5mm |
| d | 12mm |
| h | 76mm |
| m | 89mm |
| s | M16 |
| t | 40mm |
| v | 102mm |
| w | 63mm |
| B | 42.9mm |
| n | 17.5mm |
| Weight | 1.3 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 4500 rpm |
