SKU: SW135-M2400

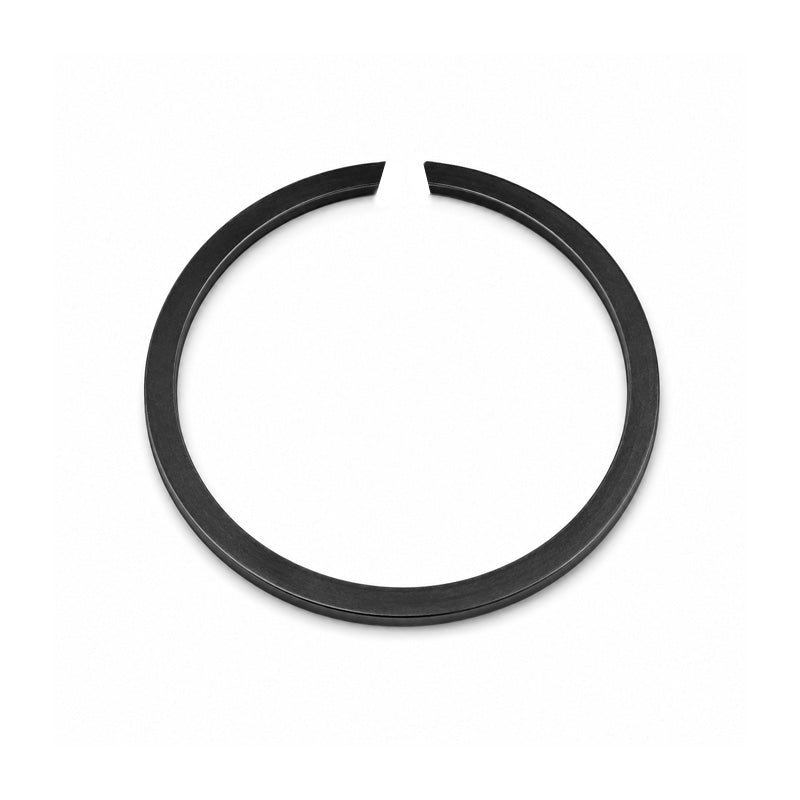

SW135 Snap Ring to Suit 135mm Shaft
SW135 Snap Ring to Suit 135mm Shaft
Regular price
$6.43
ex VAT
Regular price
Sale price
$6.43
ex VAT
Equivalent to: DIN5417 DIN 5417 CFS135 CFS-135 2400-135 SW135 SW-135 M2400-135
In stock
Price Break
5+
$6.37
10+
$6.11
20+
$5.98
50+
$5.79
100+
$5.66
500+
$5.34
1000+
$4.50
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
Equivalent: DIN5417 DIN 5417 CFS135 CFS-135 2400-135 SW135 SW-135 M2400-135
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 131.1mm
- Shaft Size:
- 135mm
Technical
Technical
| d1 | 135mm |
|---|---|
| s | 2.5mm (Tolerance -0.1) |
| b | 4mm (Tolerance -0.1) |
| d3 max. | 131.1mm |
| d2 | 132.4mm (Tolerance - 0.25) |
| m min. | 2.7mm |
| FN | 87 kN |
| FR | 44 kN |
| n det x1000 | 1 rpm |
