SKU: SY20TF/VA201-SKF

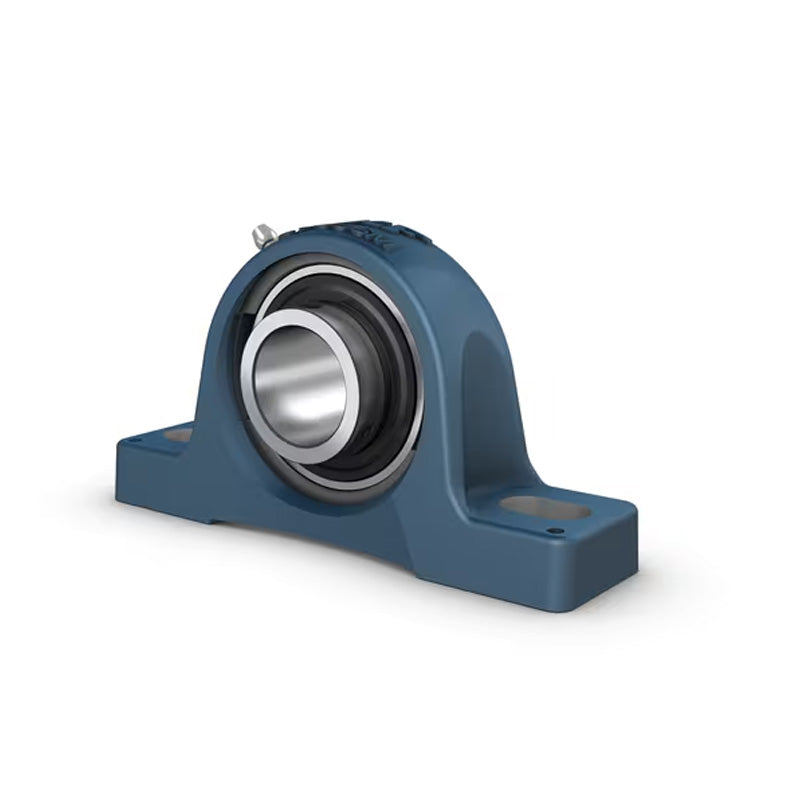

SKF SY20TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 20mm
SKF SY20TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 20mm
Regular price
$177.51
ex VAT
Regular price
Sale price
$177.51
ex VAT
In stock
Price Break
10+
$157.98
19+
$149.11
29+
$147.33
39+
$145.56
49+
$143.78
74+
$142.01
99+
$133.13
199+
$131.36
249+
$129.58
499+
$127.81
999+
$124.26
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 20mm |
|---|---|
| A | 32mm |
| B | 31mm |
| H | 64mm |
| H1 | 33.3mm |
| H2 | 14mm |
| J | 97mm |
| L | 127mm |
| N | 20.5mm |
| N1 | 11.5mm |
| G | 10mm |
| S1 | 18.3mm |
| Dynamic load C | 12.7 kN |
| Static load Co | 6.55 kN |
| Weight | 0.57 kg |
