SKU: SY30TF/VA228-SKF

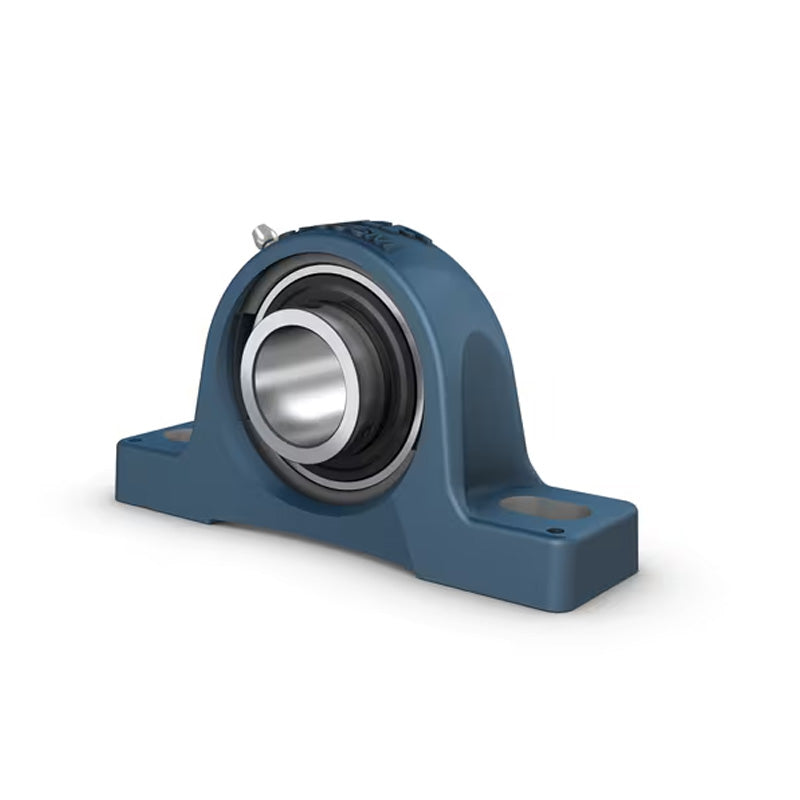

SKF SY30TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 30mm
SKF SY30TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 30mm
Regular price
$379.55
ex VAT
Regular price
Sale price
$379.55
ex VAT
In stock
Price Break
10+
$337.80
19+
$318.82
29+
$315.03
39+
$311.23
49+
$307.44
74+
$303.64
99+
$284.66
199+
$280.87
249+
$277.07
499+
$273.28
999+
$265.69
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 30mm |
|---|---|
| A | 40mm |
| B | 38.1mm |
| H | 82mm |
| H1 | 42.9mm |
| H2 | 16.5mm |
| J | 117.5mm |
| L | 152mm |
| N | 23.5mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 22.2mm |
| Dynamic load C | 19.5 kN |
| Static load Co | 11.2 kN |
| Weight | 1.1 kg |
