SKU: SY45TF/VA201-SKF

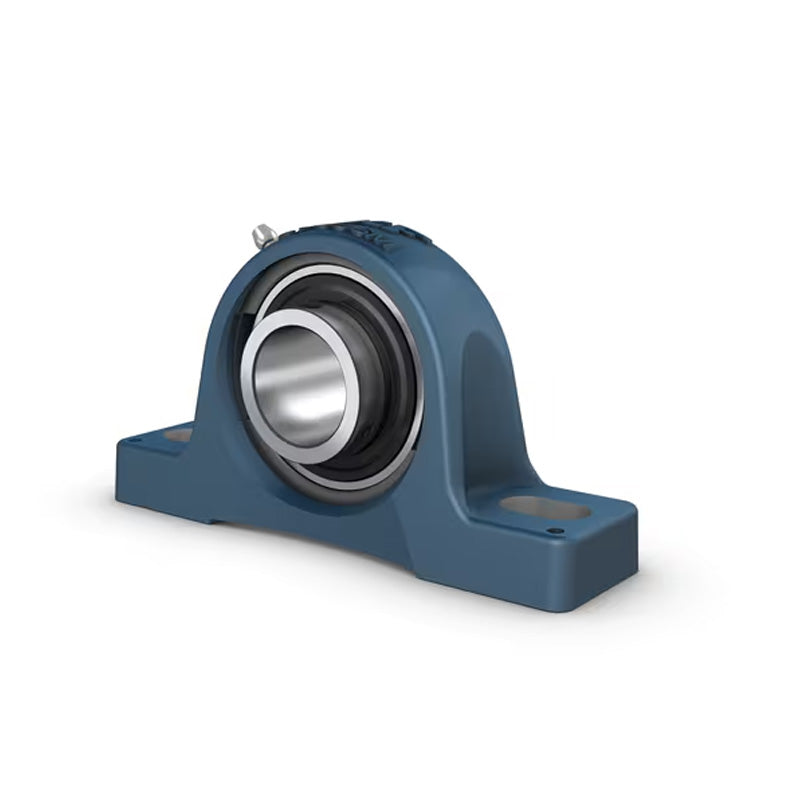

SKF SY45TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 45mm
SKF SY45TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 45mm
Regular price
$396.92
ex VAT
Regular price
Sale price
$396.92
ex VAT
In stock
Price Break
10+
$353.26
19+
$333.41
29+
$329.44
39+
$325.47
49+
$321.51
74+
$317.54
99+
$297.69
199+
$293.72
249+
$289.75
499+
$285.78
999+
$277.84
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 45mm |
|---|---|
| A | 48mm |
| B | 49.2mm |
| H | 107mm |
| H1 | 54mm |
| H2 | 20.6mm |
| J | 143.5mm |
| L | 187mm |
| N | 22.5mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 30.2mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 2.3 kg |
