SKU: SYF30FM-SKF

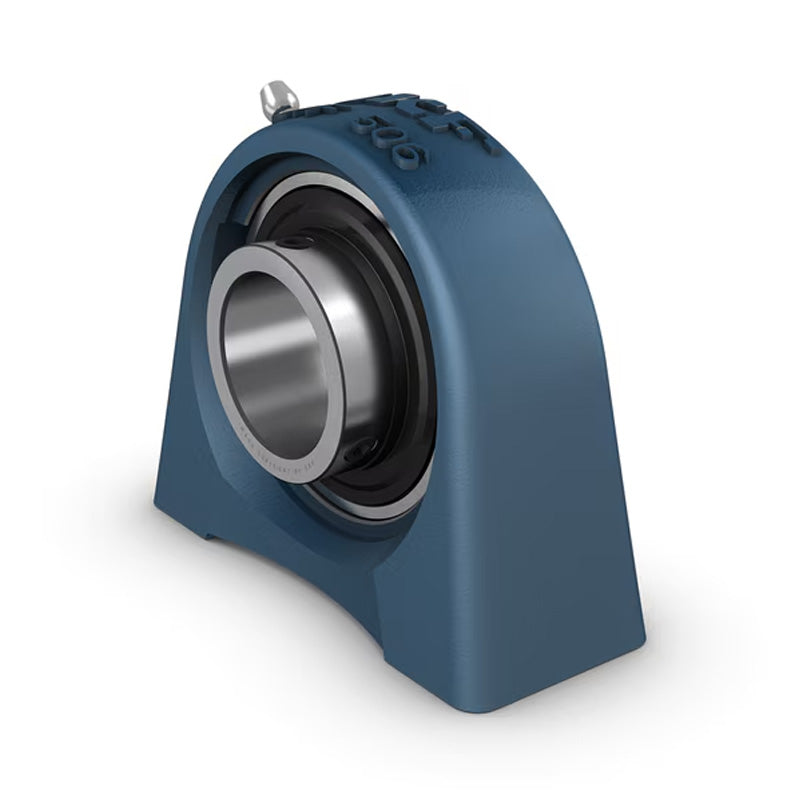

SKF SYF30FM Small Footprint Cast Iron Plummer Block with Eccentric Collar 30mm Insert
SKF SYF30FM Small Footprint Cast Iron Plummer Block with Eccentric Collar 30mm Insert
Regular price
$96.98
ex VAT
Regular price
Sale price
$96.98
ex VAT
In stock
Price Break
10+
$86.31
19+
$81.46
29+
$80.49
39+
$79.52
49+
$78.55
74+
$77.58
99+
$72.74
199+
$71.77
249+
$70.80
499+
$69.83
999+
$67.89
Description
Description
|
SKF Y-bearing Plummer Block Units with a Shortened Cast Housing and Locking Collar: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- SYF
- Bolt Hole Centres:
- 76.2mm
Technical
Technical
| d | 30mm |
|---|---|
| A | 40mm |
| A1 | 25mm |
| B1 | 35.7mm |
| H | 83mm |
| H1 | 42.9mm |
| J | 76.2mm |
| L | 98mm |
| G | M10 |
| G1 | 15mm |
| s1 | 26.7mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 5300 rpm |
| Weight | 0.9 kg |
| Housing | SYF506 |
| Insert | YET206 |
