SKU: SYF35TF-SKF

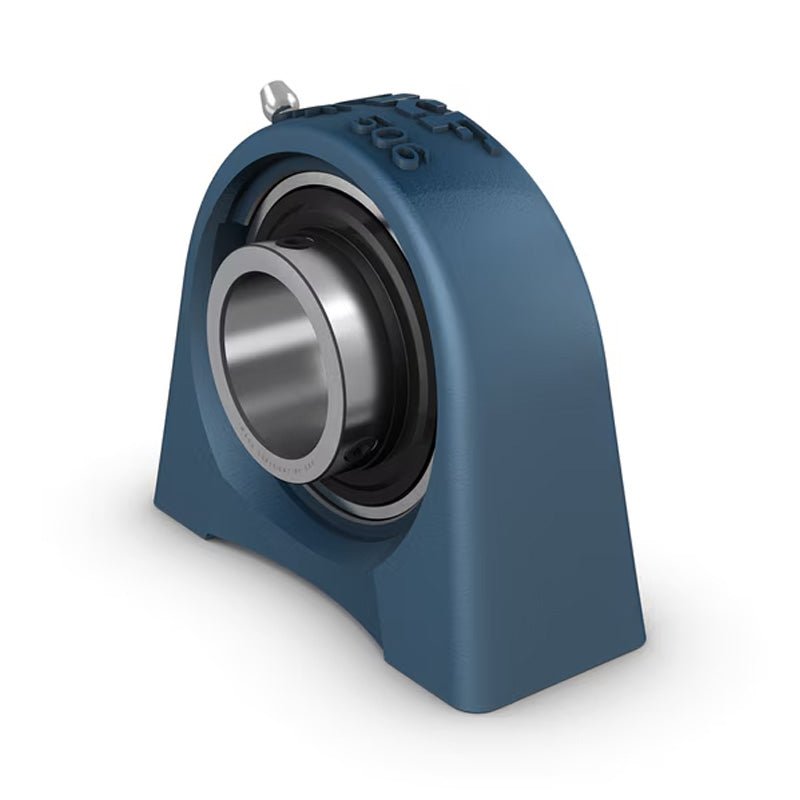

SKF SYF35TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 35mm
SKF SYF35TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 35mm
Regular price
$103.75
ex VAT
Regular price
Sale price
$103.75
ex VAT
In stock
Price Break
10+
$92.34
19+
$87.15
29+
$86.11
39+
$85.08
49+
$84.04
74+
$83.00
99+
$77.81
199+
$76.78
249+
$75.74
499+
$74.70
999+
$72.63
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- SYF
- Bolt Hole Centres:
- 82.6mm
Technical
Technical
| d | 35mm |
|---|---|
| A | 45mm |
| A1 | 27mm |
| B | 42.9mm |
| H | 93mm |
| H1 | 47.6mm |
| J | 82.6mm |
| L | 103mm |
| G | M10 |
| G1 | 15mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.2 kg |
| Housing | SYF507 |
| Insert | YAR207-2F |
