SKU: SYF45TF-SKF

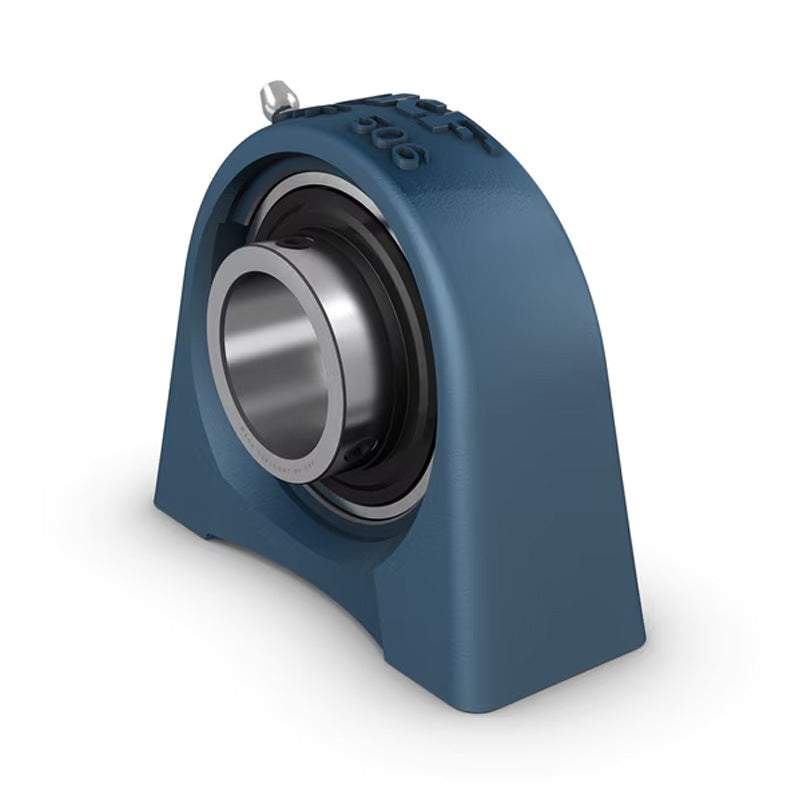

SKF SYF45TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 45mm
SKF SYF45TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 45mm
Regular price
$129.99
ex VAT
Regular price
Sale price
$129.99
ex VAT
In stock
Price Break
10+
$115.69
19+
$109.19
29+
$107.89
39+
$106.59
49+
$105.29
74+
$103.99
99+
$97.49
199+
$96.19
249+
$94.89
499+
$93.59
999+
$90.99
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- SYF
- Bolt Hole Centres:
- 95.3mm
Technical
Technical
| d | 45mm |
|---|---|
| A | 48mm |
| A1 | 32mm |
| B | 49.2mm |
| H | 107.5mm |
| H1 | 54mm |
| J | 95.3mm |
| L | 120mm |
| G | M12 |
| G1 | 22mm |
| s1 | 30.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 1.8 kg |
| Housing | SYF509 |
| Insert | YAR209-2F |
