SKU: SYF50TF-SKF

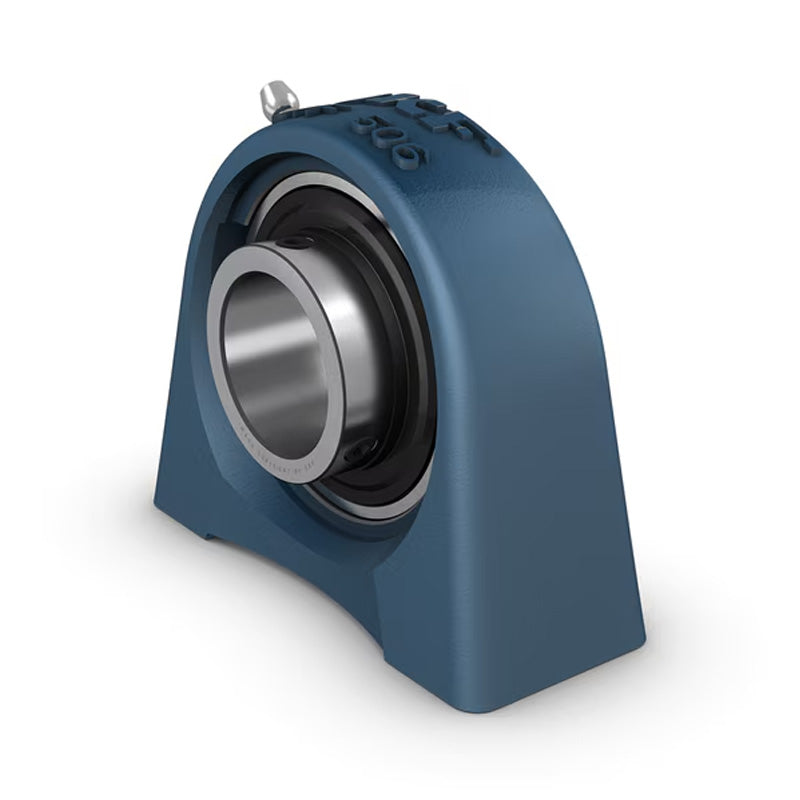

SKF SYF50TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 50mm
SKF SYF50TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 50mm
Regular price
$141.55
ex VAT
Regular price
Sale price
$141.55
ex VAT
In stock
Price Break
10+
$125.98
19+
$118.90
29+
$117.49
39+
$116.07
49+
$114.66
74+
$113.24
99+
$106.16
199+
$104.75
249+
$103.33
499+
$101.92
999+
$99.09
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- SYF
- Bolt Hole Centres:
- 101.6mm

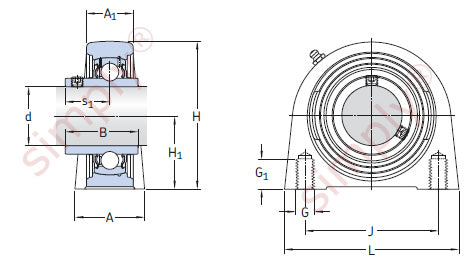

Technical
Technical
| d | 50mm |
|---|---|
| A | 54mm |
| A1 | 34mm |
| B | 51.6mm |
| H | 114.5mm |
| H1 | 57.2mm |
| J | 101.6mm |
| L | 135mm |
| G | M16 |
| G1 | 25.5mm |
| s1 | 32.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.2 kg |
| Housing | SYF510 |
| Insert | YAR210-2F |
