SKU: SYFJ35TF-SKF

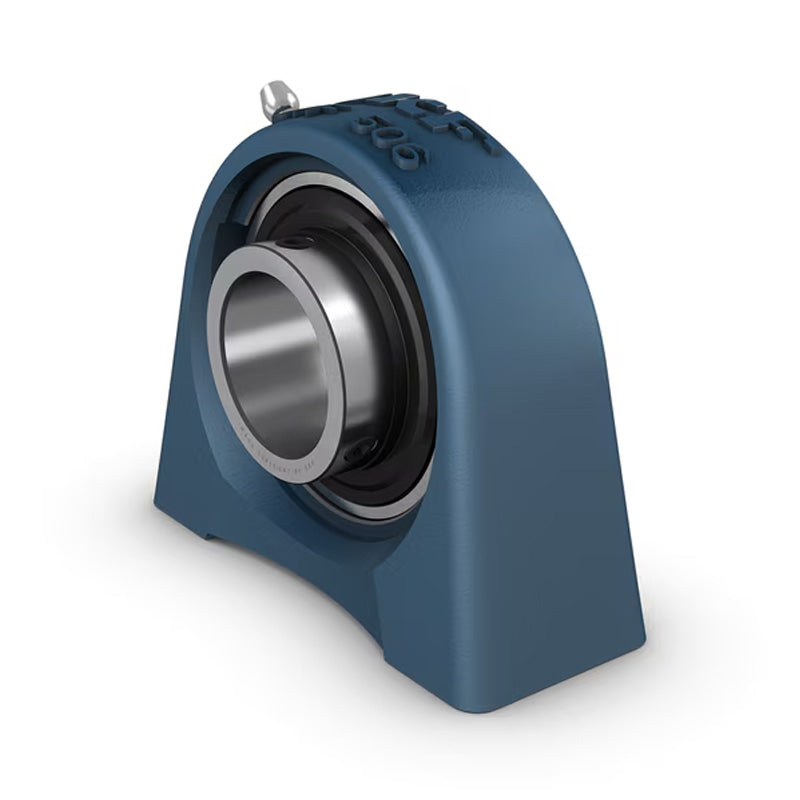

SKF SYFJ35TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 35mm
SKF SYFJ35TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 35mm
Regular price
$66.62
ex VAT
Regular price
Sale price
$66.62
ex VAT
In stock
Price Break
10+
$59.29
19+
$55.96
29+
$55.29
39+
$54.63
49+
$53.96
74+
$53.30
99+
$49.97
199+
$49.30
249+
$48.63
499+
$47.97
999+
$46.63
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- SYFJ
- Bolt Hole Centres:
- 80mm
Technical
Technical
| d | 35mm |
|---|---|
| A | 48mm |
| A1 | 30.5mm |
| B | 42.3mm |
| H | 96mm |
| H1 | 47.6mm |
| H2 | 12mm |
| J | 80mm |
| L | 110mm |
| G | M14 |
| G1 | 20mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.4 kg |
| Housing | SYFJ507 |
| Insert | YAR207-2F |
