SKU: TA.1525.Z-EU

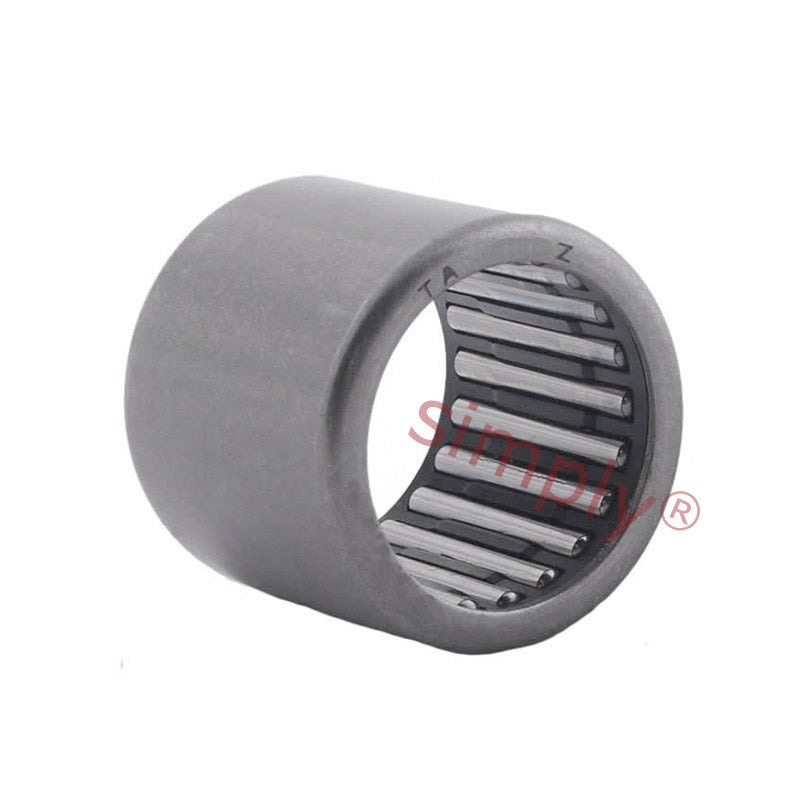

Premier Budget TA1525Z Needle Roller Bearing Open End Type 15x22x25mm
Premier Budget TA1525Z Needle Roller Bearing Open End Type 15x22x25mm
Regular price
$10.62
ex VAT
Regular price
Sale price
$10.62
ex VAT
Equivalent to: HMK1525
In stock
Price Break
10+
$9.45
19+
$8.92
29+
$8.81
39+
$8.71
49+
$8.60
74+
$8.50
99+
$7.97
199+
$7.86
249+
$7.75
499+
$7.65
999+
$7.43
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1525
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 22mm
- Width:
- 25mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 22mm |
| C | 25mm |
| Dynamic load | 16300N |
| Static load | 24200N |
| Inner race | IRT1025-1 |
| Weight | 25g |
