SKU: TA.1620.Z-EU

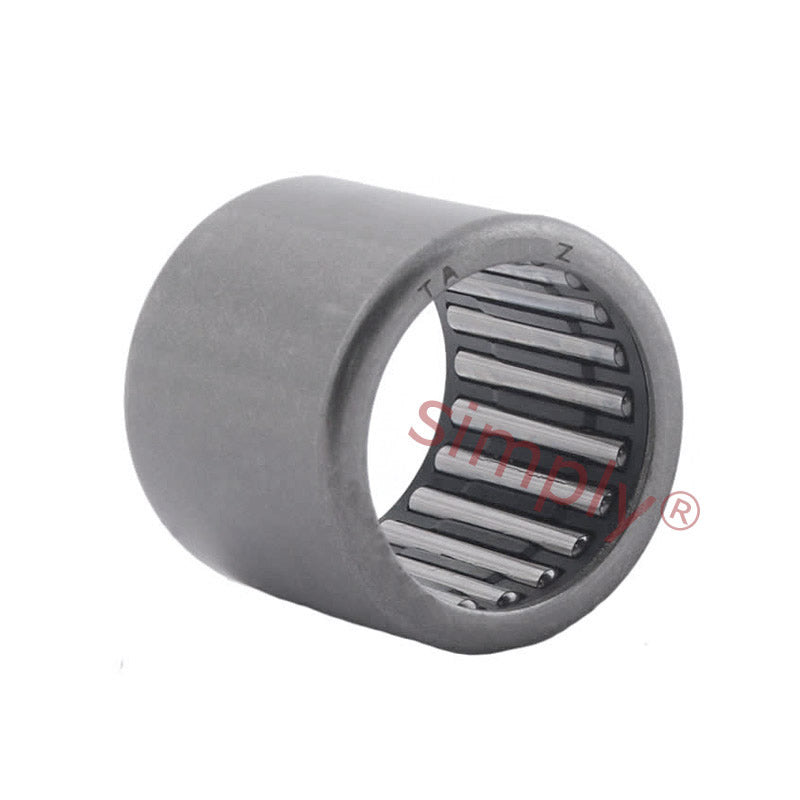

Premier Budget TA1620Z Needle Roller Bearing Open End Type 16x24x20mm
Premier Budget TA1620Z Needle Roller Bearing Open End Type 16x24x20mm
Regular price
$10.43
ex VAT
Regular price
Sale price
$10.43
ex VAT
Equivalent to: HMK1620
In stock
Price Break
10+
$9.28
19+
$8.76
29+
$8.66
39+
$8.55
49+
$8.45
74+
$8.34
99+
$7.82
199+
$7.72
249+
$7.61
499+
$7.51
999+
$7.30
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1620
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 20mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 24mm |
| C | 20mm |
| Dynamic load | 14700N |
| Static load | 19100N |
| Inner race | IRT1220-1 |
| Weight | 25g |
