SKU: TA.223020.Z-EU

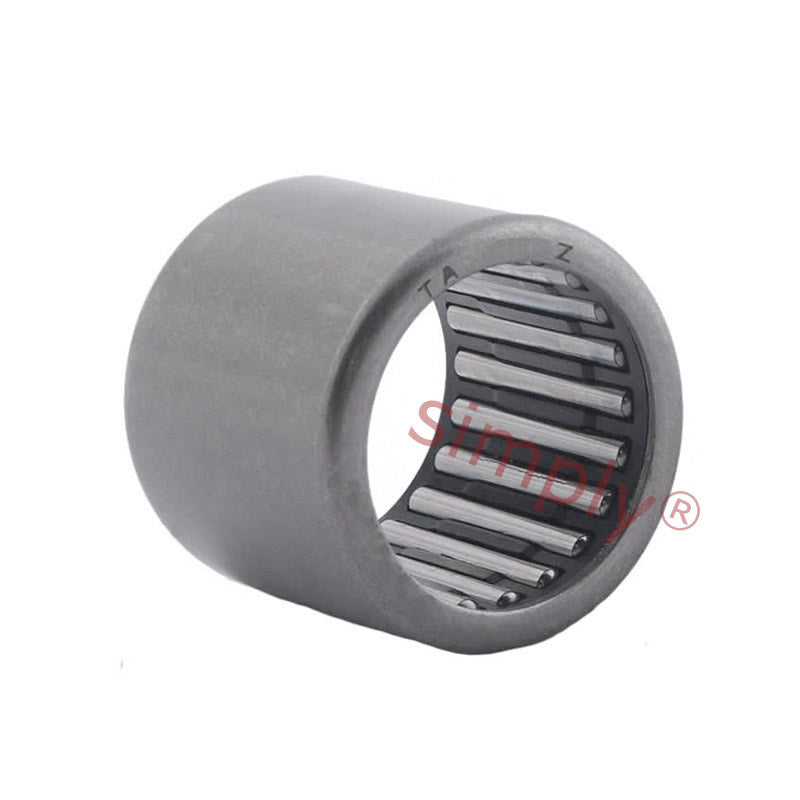

Premier Budget TA223020Z Needle Roller Bearing Open End Type 22x30x20mm
Premier Budget TA223020Z Needle Roller Bearing Open End Type 22x30x20mm
Regular price
$11.39
ex VAT
Regular price
Sale price
$11.39
ex VAT
Equivalent to: HMK223020
In stock
Price Break
10+
$10.14
19+
$9.57
29+
$9.45
39+
$9.34
49+
$9.23
74+
$9.11
99+
$8.54
199+
$8.43
249+
$8.31
499+
$8.20
999+
$7.97
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK223020
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 30mm
- Width:
- 20mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 30mm |
| C | 20mm |
| Dynamic load | 17500N |
| Static load | 26100N |
| Inner race | IRT1720-2 |
| Weight | 32.5g |
