SKU: TA.3020.Z-EU

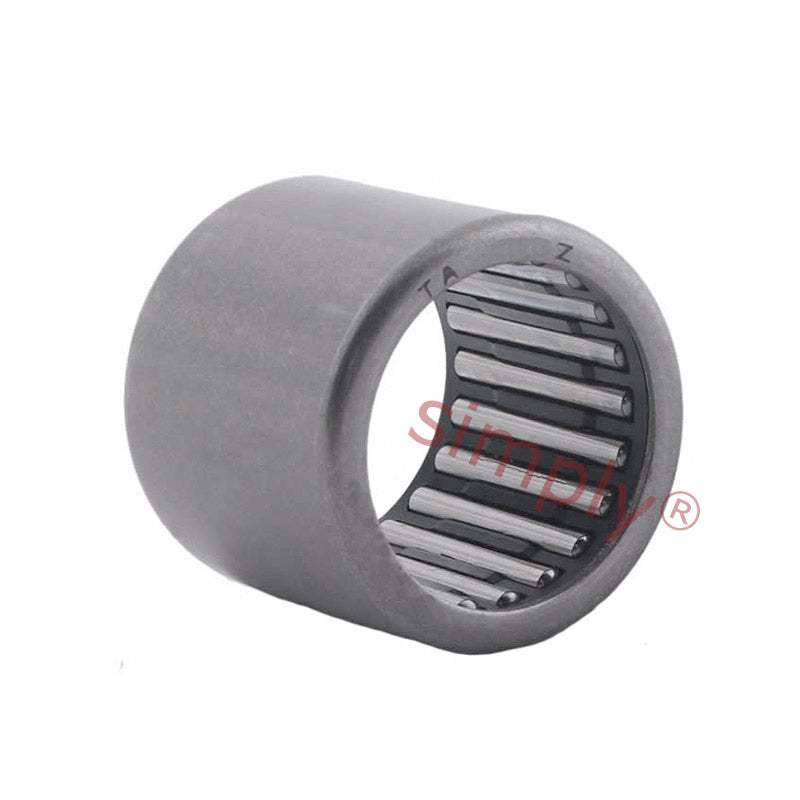

Premier Budget TA3020Z Needle Roller Bearing Open End Type 30x40x20mm
Premier Budget TA3020Z Needle Roller Bearing Open End Type 30x40x20mm
Regular price
$11.34
ex VAT
Regular price
Sale price
$11.34
ex VAT
Equivalent to: HMK3020
In stock
Price Break
10+
$10.09
19+
$9.53
29+
$9.41
39+
$9.30
49+
$9.19
74+
$9.07
99+
$8.51
199+
$8.39
249+
$8.28
499+
$8.16
999+
$7.94
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK3020
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 40mm
- Width:
- 20mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 40mm |
| C | 20mm |
| Dynamic load | 24500N |
| Static load | 36300N |
| Inner race | IRT2520-1 |
| Weight | 54.5g |
