SKU: TA.3520.Z-EU

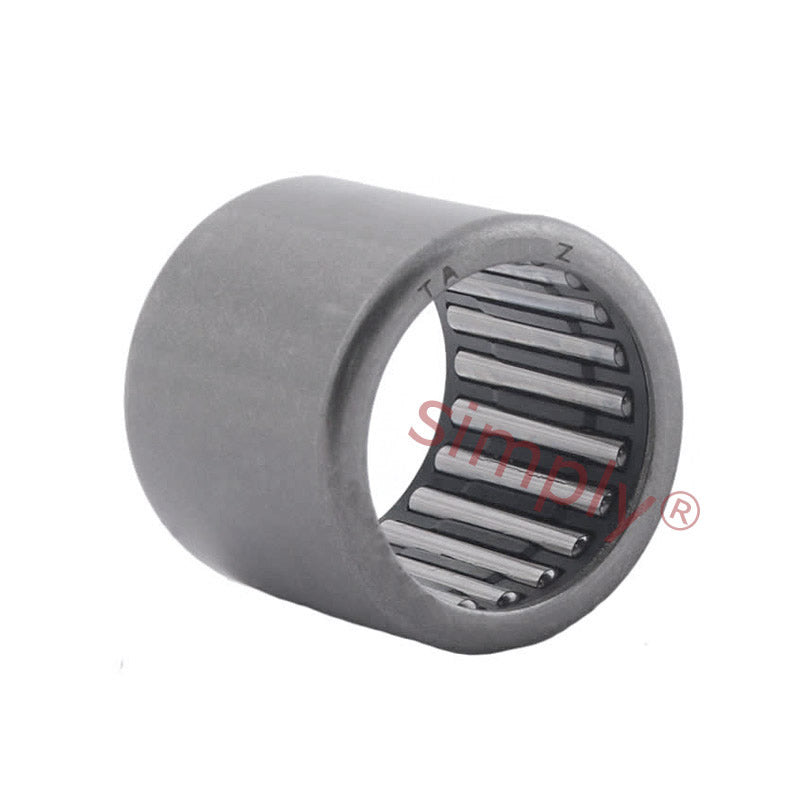

Premier Budget TA3520Z Needle Roller Bearing Open End Type 35x45x20mm
Premier Budget TA3520Z Needle Roller Bearing Open End Type 35x45x20mm
Regular price
$23.47
ex VAT
Regular price
Sale price
$23.47
ex VAT
Equivalent to: HMK3520
In stock
Price Break
10+
$20.89
19+
$19.71
29+
$19.48
39+
$19.25
49+
$19.01
74+
$18.78
99+
$17.60
199+
$17.37
249+
$17.13
499+
$16.90
999+
$16.43
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK3520
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 45mm
- Width:
- 20mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 45mm |
| C | 20mm |
| Dynamic load | 27000N |
| Static load | 43100N |
| Inner race | IRT3020 |
| Weight | 62.5g |
