SKU: TA.4020.Z-EU

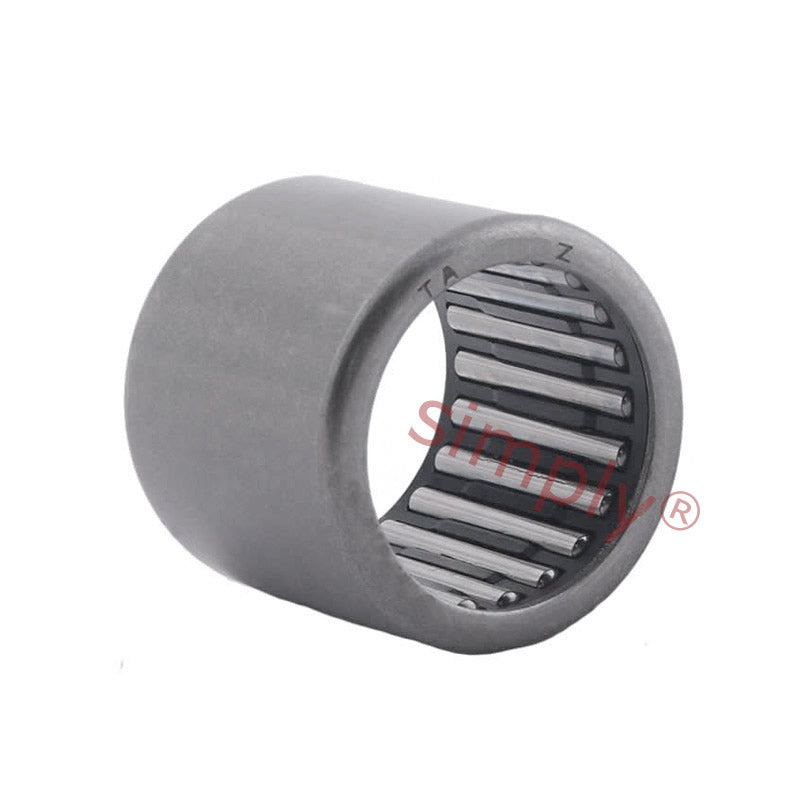

Premier Budget TA4020Z Needle Roller Bearing Open End Type 40x50x20mm
Premier Budget TA4020Z Needle Roller Bearing Open End Type 40x50x20mm
Regular price
$13.18
ex VAT
Regular price
Sale price
$13.18
ex VAT
Equivalent to: HMK4020
In stock
Price Break
10+
$11.73
19+
$11.07
29+
$10.94
39+
$10.81
49+
$10.68
74+
$10.54
99+
$9.89
199+
$9.75
249+
$9.62
499+
$9.49
999+
$9.23
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK4020
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 50mm
- Width:
- 20mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 50mm |
| C | 20mm |
| Dynamic load | 28400N |
| Static load | 47800N |
| Inner race | IRT3520 |
| Weight | 54g |
